Tajima

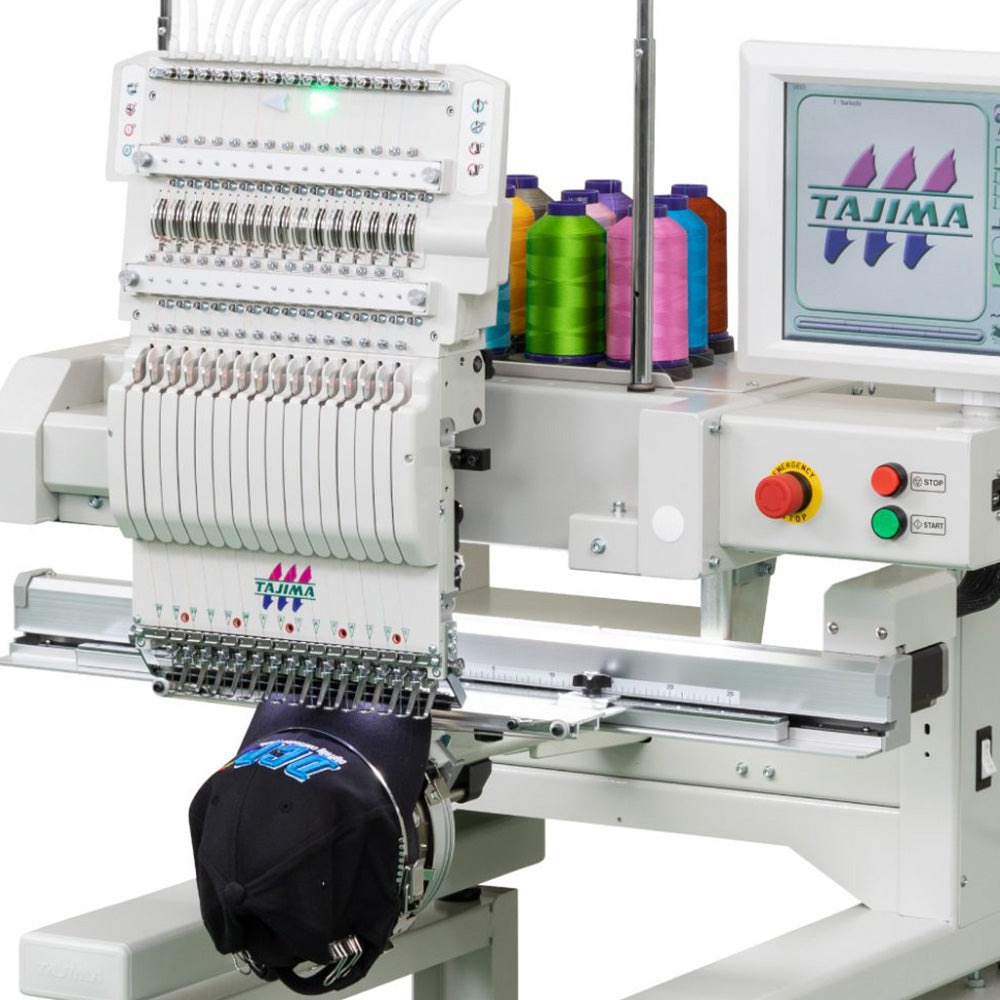

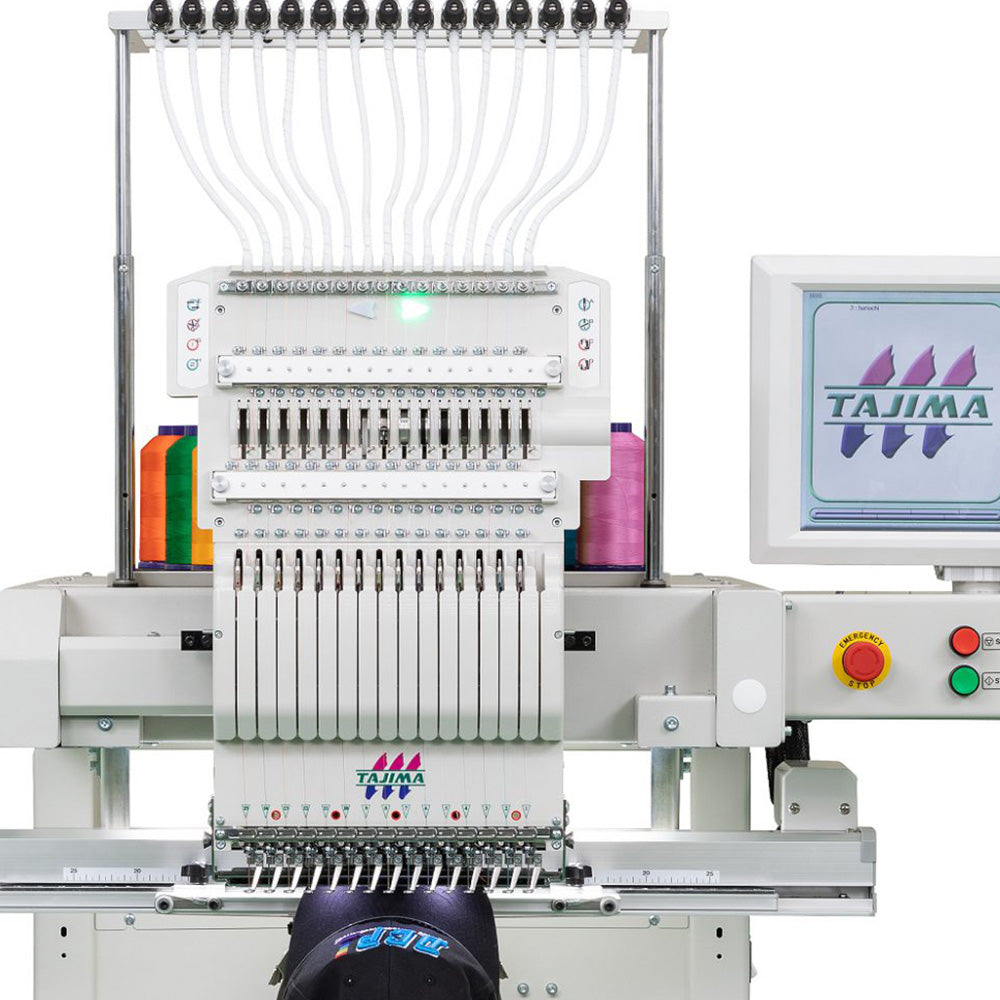

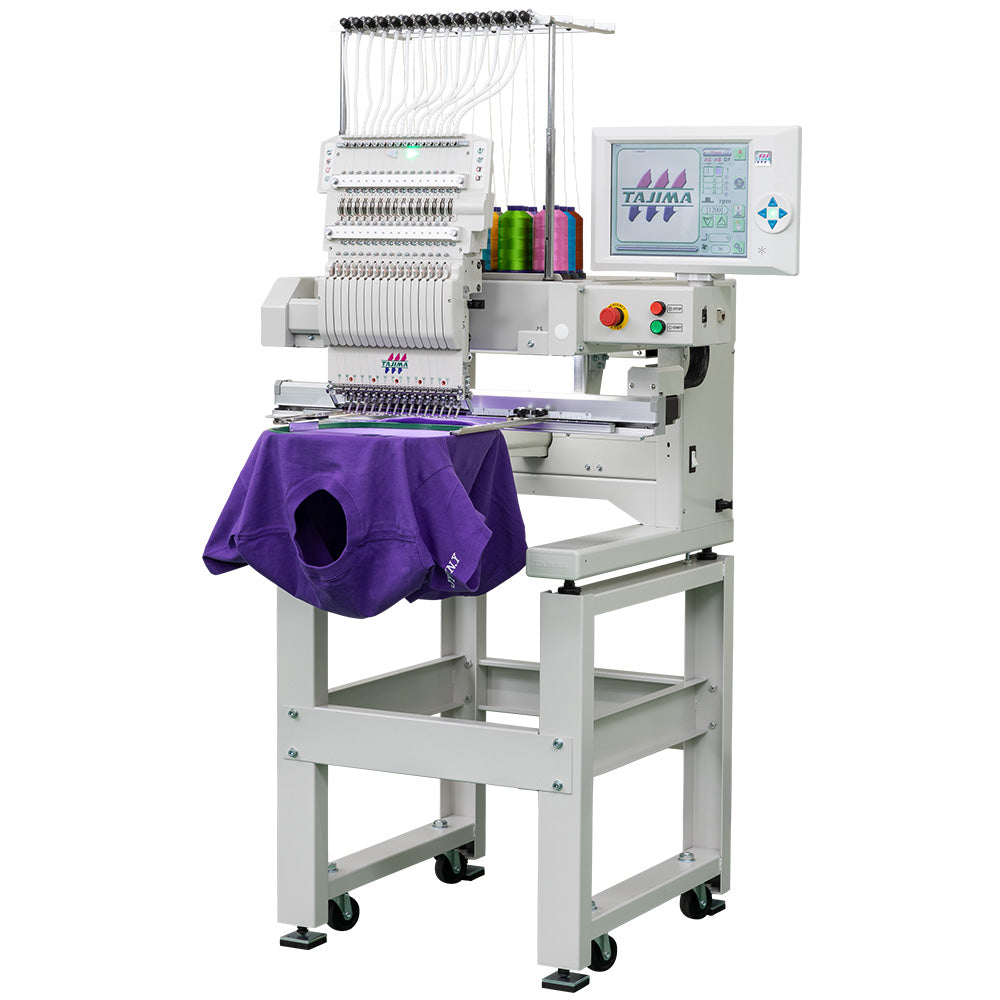

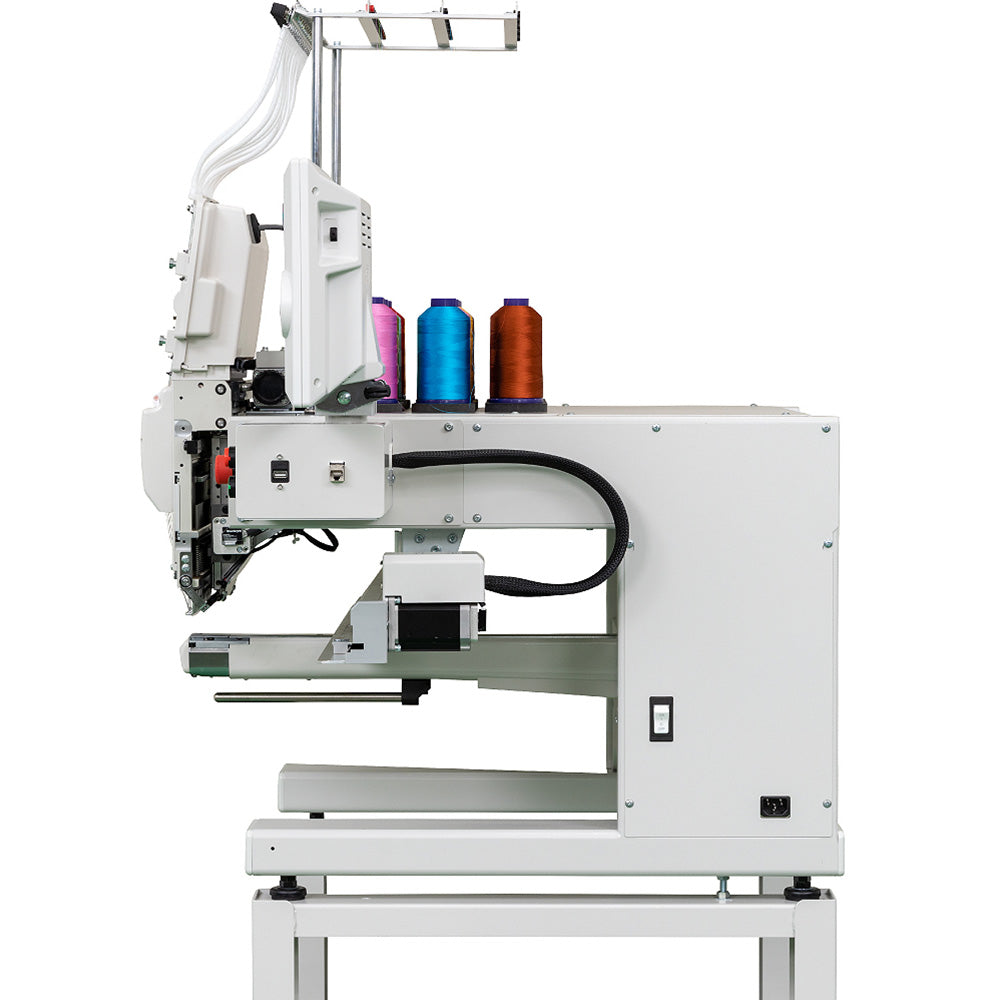

Tajima TMEZ-SC1501 (Machine à broder monotête)

Tajima TMEZ-SC1501 (Machine à broder monotête) - Default Title

SKU:

Financing Options

  Fabriqué au Japon

La Tajima TMEZ est la première et la SEULE machine à broder au monde dotée d'un réglage automatique de la tension du fil. La technologie i-TM (Intelligent Thread Management) élimine le besoin de réglage manuel de la tension. Le pied-de-biche détecte automatiquement l'épaisseur du tissu et évalue automatiquement le type de point à venir, puis s'ajuste en fonction de la longueur du point, de la direction du point, du type de point et de la vitesse de la machine. Non seulement cela vous offre un gain de productivité de 20 à 30 %, mais cela permet également un travail de broderie plus fin, moins de ruptures de fil sur les casquettes et peu ou pas de formation pour les nouveaux opérateurs.

Single Head vs. Multi Head

Tajima TMEZ-SC1501 (Machine à broder monotête)

Tajima TMEZ-KC (Machine à broder multi-têtes)

Product Resources

Afficher tous les détails

AI TECHNOLOGY “i-TM” FOR HIGH QUALITY, STABLE STITCHES.



  • Anyone can be an embroidery specialist with no more tension knobs!

    i-TM Logo


    i-TM is mounted on the tension base in place of the previous tension knobs.

  • No More Tension Knobs

  • • No upper thread manual tension adjustment for the operator
    • Automatic tension adjustment based on thread type
    • Automatic tension adjustment for a change from run to satin stitches
    • The pressor foot automatically detects the fabric thickness
    • Automatic evaluation of upcoming stitch types and adjusting according to stitch length, stitch direction, type of stitch, machine speed and thickness of the fabric








DIRECT COMMAND SWITCHES


Direct Command Switches



Run Stitch Satin Stitch




Learn More About i-TM (Intelligent Thread Management)

DIGITALLY CONTROLLED PRESSOR FOOT (DCP) REDUCES FLUTTERING


A digitally controlled presser foot that responds to changes in fabric thickness stitch by stitch. Accurate and beautiful embroidery from thin to 3D embroidery with no settings required. The machine reduces the fluttering of the fabric at the start of sewing and during thread trimming, minimizing problems such as skip stitch and thread trimming failure.



DCP

  • What is “ fluttering”?
    “Fluttering” occurs when the material is lifted up during embroidery which causes skipped stitches, miss-trimming, and reduced quality stitching.

  • The DCP can be adjusted randomly according to the material thickness on the operation panel. It simplifies the mechanical process that was previously required and time consuming.

    ※DCP stands for Digitally Controlled Presser foot.





Learn More About DCP (Digitally Controlled Presser Foot)


  • EQUIPPED WITH THE INDUSTRY’S LARGEST TOUCHSCREEN


    The large-scale 12.1-inch operation panel is equipped with various convenient icons and multilingual displays. A touch panel allows more intuitive operation.


    Greatly increased memory capacity!

    • Maximum Design Storage - 650 designs
    • Maximum Stitch Count - 40 million



  • Touchscreen

  • Slim Cylinder
    Slim Cylinder

    Slim Cylinder makes it possible to embroider on smaller products such as socks, gloves, and pockets.

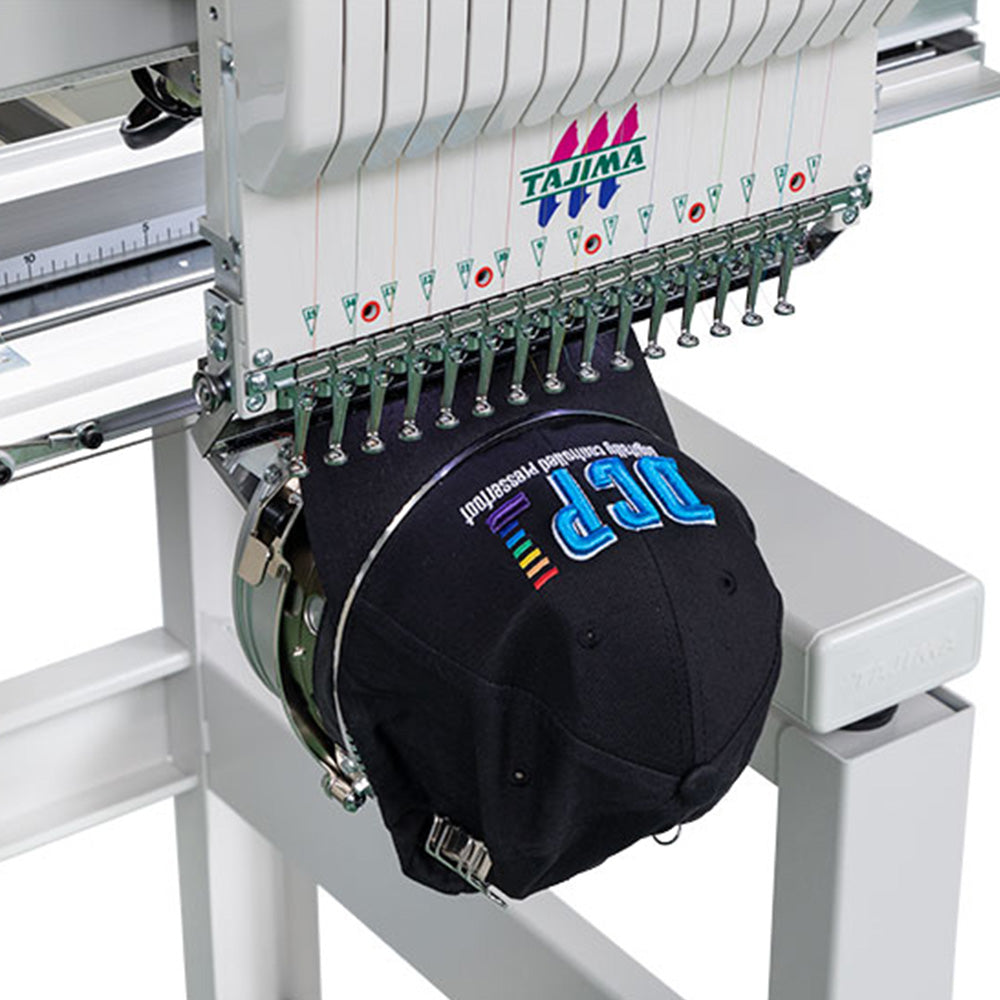

  • Cap Driver
    Cap Driver

    The cap driver incorporates a lower shaft and a third locking pin to stabilize the cap during embroidery to enhance quality, and run at higher speeds.

  • Design Position Adjustment
    Design Position Adjustment

    Design Position Adjustment feature allows a design to follow any reference line of your choice ensuring perfect alignment every time.

  • Thread Locking
    Thread Locking

    The Thread Locking System secures the thread after a trim to help prevent the thread pulling out during needle startup.

  • Trimmed Needle Plate
    Trimmed Needle Plate

    A shorter distance between the needle hole and the edge of the trimmed needle plate offers an increased embroidery area on many items.

  • LED Position Marker
    LED Position Marker

    A red dot projected above the needle hole helps identify the actual embroidery area when tracing the design before stitching.

  • LED Needle Base Light
    LED Needle Base Light

    The LED Needle Base Light illuminates the needle area and provides the operator a better view of the item being embroidered.

  • Steeper Head Tilt
    Steeper Head Tilt

    The Steeper Tilt Head angles the bill of a cap more which allows stitching closer to the bill and increases the embroidery area.

INCLUDES 2 OF EACH:


Frames Included

Additional Information

  • Auto Color Change

    • Auto needle bar change on color changes within the designs.


    Large Stitch Memory

    • The standard memory is 40,000,000 stitches and able to store a max of 200 designs


    Auto Thread Break Sensor

    • Machine will automatically sense any change in tension with upper thread break or snag.

    Auto Thread Trim

    • Trimmer within needle plate is auto within all trims within a design

    Barcode Ready

    • All machine equipped with multiple USB ports for easy use of any USB style barcode reader

    Color LCD Panel

    • Color LCD panel allows for easy navigation

    Cubical Frame Design

    • A large 14.2" x 19.7" sewing field lets Tajima Embroidery Machines take on the big jobs! Full backs and fronts are no problem.

    High Speed Rotary Hook

    • The rotary hook ensures stable stitching at high production speeds; thereby minimizing thread breaks while balanced thread tension.



  • LAN Enabled

    • Tajima Embroidery Machines are LAN enabled to connect with your network.   Easily transmit designs and improve workflow.

    Large Sewing Field

    • A large 14.2" x 19.7" sewing field lets Tajima Embroidery Machines take on the big jobs. Full backs and fronts are no problem.

    Quick Frame Changeover

    • Easily switch from caps to tubular to flats to cylinder sewing.

    Safety Beam Sensor

    • An invisible beam of light surrounds the work area of the machine while sewing. Breaking the beam stops the machine

    Picker-Free Embroidery

    • Picker has been eliminated to cut down on bird's nests ensuring deduction in product loss

    USB Enabled

    • Data can be transferred to the controller via USB Flash Drive or LAN machine connection.

    DCP

    • The digitally controlled presserfoot eliminates stitch skipping, trimming errors, and uneven embroidery.

Model TMEZ-SC1501
Needles 15
Factory Options Position Marker, LED Lamp
Options Stand, Stand Tray, Border Frame, Cap Frame 2
Speed Max. 1,200rpm
Tubular Embroidery Field 14" x 19.6" / 360mm x 500mm
Cap Embroidery Field 3" x 14.2" / 75mm x 360mm
Electricity Single phase 100V,200V,50Hz/60Hz
Power Consumption 160W
Dimensions 30" L x 34" W x 66" H
Weight 295 lbs
Crated Dimensions 46" L x 39" W x 51" H
Crated Weight 383 lbs
Min. Door Clearance 32" W



Specifications

Le Tajima TMEZ-SC1501 (Machine à broder monotête) vous convient-il ?

Entrez vos informations ci-dessous et un représentant commercial RB Digital vous contactera pour ajouter le Tajima TMEZ-SC1501 (Machine à broder monotête) à votre entreprise de décoration de vêtements.
