Toyoda

Falcon Forge-2 (Auto Release 16” X 20” Pull Out Heat Press)

Falcon Forge-2 (Auto Release 16” X 20” Pull Out Heat Press) - Default Title

SKU:

$2,100.00 CAD
$2,100.00 CAD
Sale Sold out
The cost of shipping will be determined after you complete your purchase.

Note: Installation from RB Digital is not necessary or provided. Please call for any assistance.

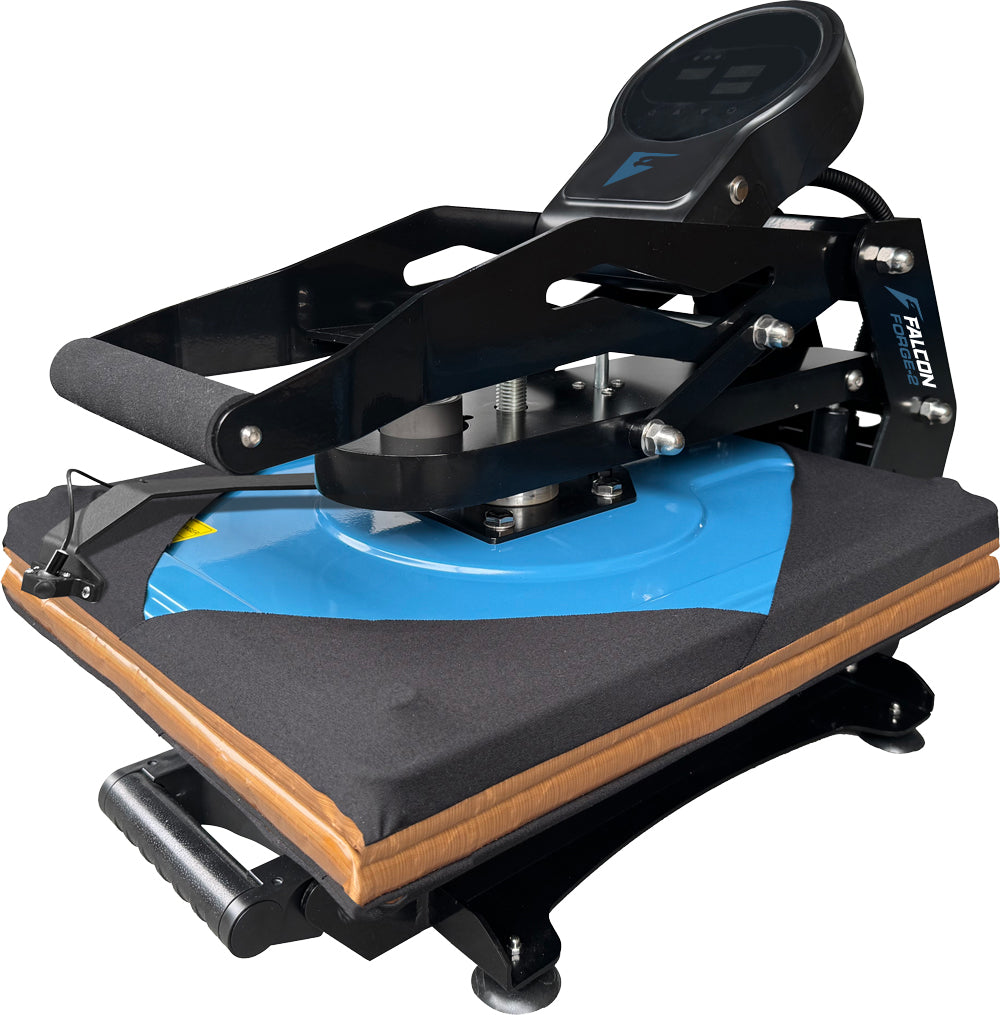

The Falcon Forge-2 Auto Release 16” x 20” Pull Out Heat Press combines a heavy-duty, industrial-grade steel frame with accurate, easy-to-use controls for reliable everyday production. The updated design features a pull-out lower platen with slide lock, providing easier access for garment positioning, loading, and threading while keeping the platen securely in place during operation.

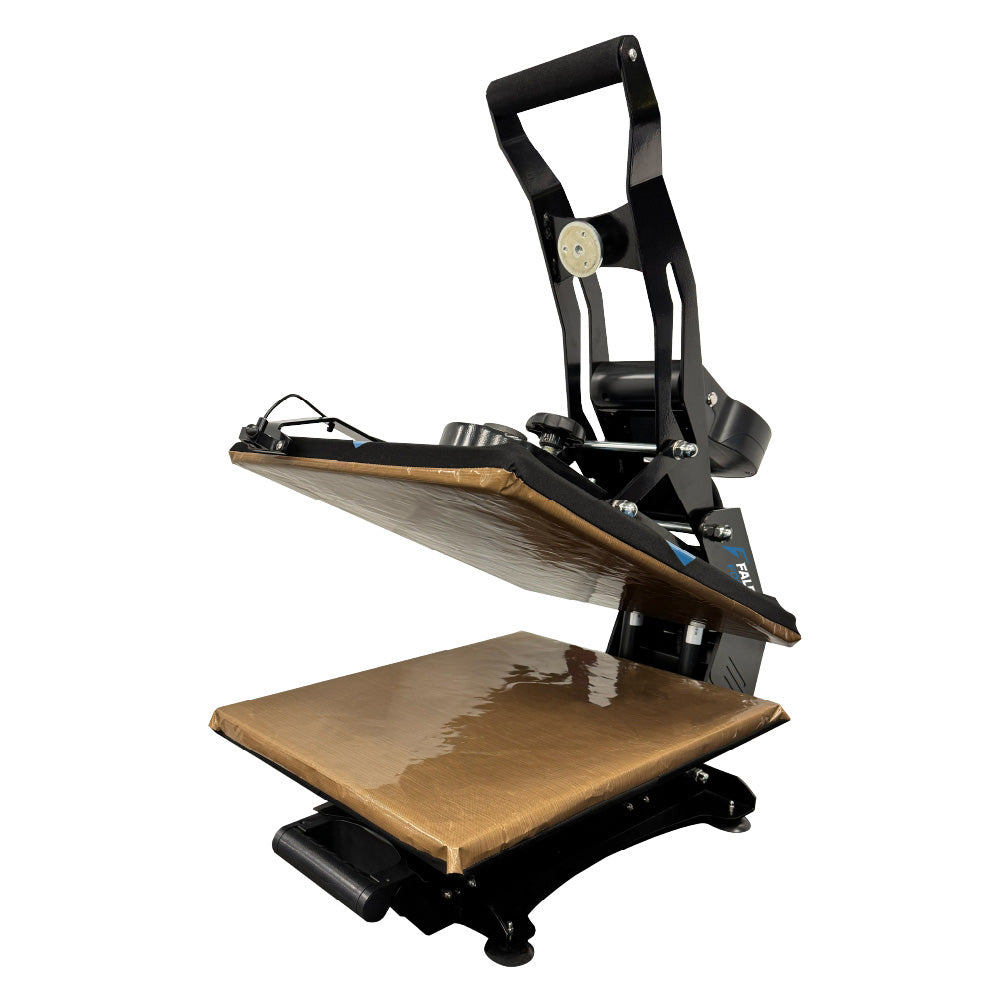

For added precision, the Forge-2 is equipped with laser alignment, helping operators quickly and consistently position garments and transfers before pressing. Its auto-release clamshell design opens automatically when the timer is complete, while the wide-opening upper platen provides additional working space and helps keep heat away from the operator’s hands.

The multi-timer allows users to preset individual time settings for multi-step applications, including pre-pressing, transfer application, and finishing.

Over 10 optional interchangeable lower platens are available, providing additional flexibility for different garment sizes and applications.

Built for professional heat transfer production, the Falcon Forge-2 is suitable for DTF transfers, sublimation, DTG finishing, screen print transfers, heat transfer vinyl, and other common heat-applied applications.

• Special Order
disabled
This product is typically ready for pickup or shipping within one week, subject to lead times provided by manufacturers.
The Falcon Forge-2 (Auto Release 16” X 20” Pull Out Heat Press) is a made-to-order product that is only assembled and prepared for shipment after you place your order. Please note that freight costs are not included in the purchase price. After your purchase, we will contact you to confirm shipping details, provide a shipping quote, and give you the lead times from the manufacturer. Upon payment of the shipping invoice, we will arrange delivery as per your preferences. For additional information, connect with a RB Digital sales specialist today.

Product Resources

View full details

Often Purchased With

  • Interchangeable Platens
    INTERCHANGEABLE SLIDE LOCK PLATENS

    Quick-swap platens adapt to different garment sizes and applications

  • Large work area
    LARGE 16" X 20" WORK AREA

    Ideal for full-size graphics and higher production efficiency

  • Automatic Open
    AUTOMATIC OPEN

    Press opens automatically for consistent timing and reduced operator fatigue

  • Laser Alignment
    LASER ALIGHMENT

    Built-in lasers ensure precise placement and repeatable results

  • Consistent Heating Element
    CONSISTENT HEATING ELEMENT

    Even heat distribution delivers reliable, professional transfers every time

  • Heavy-Duty Construction
    HEAVY-DUTY CONSTRUCTION

    Built for long-term durability in demanding production environments

  • Non-slip suction feet
    NON-SLIP SUCTION FEET

    Keeps the press stable during operation for added safety and accuracy

  • Teflon Covers
    TEFLON COVERS

    Protect garments and platens while ensuring smooth heat transfers

  • Pull-Out Drawer
    PULL-OUT DRAWER

    Slide-out lower platen improves garment loading and operator safety.

  • Touchscreen
    EASY-TO-USE TOUCHSCREEN

    Intuitive controls for fast setup, accurate settings, and repeatable jobs

Precise & High Quality Temperature Controller With Even Pressure


  • By customizing professional heat press ASIC chips, Toyoda Falcon heat presses control temperature accurately and provide stable temperature during intense work.


    Toyoda-Falcon-Smart-Temperature-Control-System-2

  • Toyoda-Falcon-Smart-Temperature-Control-System
    Precise temperature distribution with our high-quality thick heat plate ensures an exact temperature distribution over the entire heating surface.


    Even Pressure

  • Touchscreen




  • Touchscreen Controller


    With the temperature controller, not only can you adjust the temperature of the press (°C and °F) but also the press time. Toyoda Falcon heat presses allow you to display both the set value and the temperature of the press all on the same screen. Utilize the in-press counter (reset after power off) function to count the number of transfers that have been made during the current session.

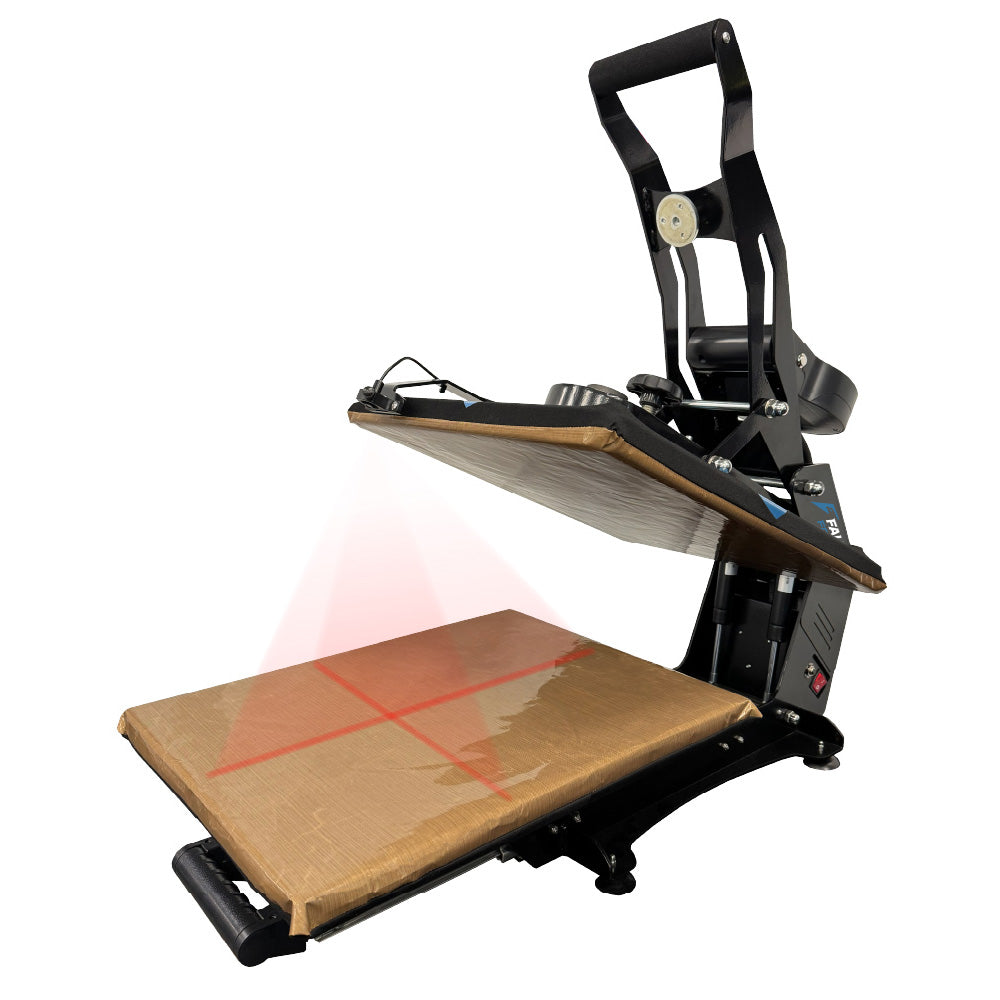

  • Laser Alignment System


    Ensure consistent placement and accurate positioning for every heat printing job.

    4 lasers that can be individually positioned to align left chest logos, individual letters and numbers, script names, full front transfer designs, and more.

  • Laser Alignment

Additional Information

  • 16” x 20” industrial-grade heavy-duty heat press
  • Pull-out lower platen for easy garment loading and positioning
  • Slide lock platen system for secure operation
  • Auto-release clamshell design
  • Integrated laser alignment for accurate transfer placement
  • Multi-timer for multi-step heat transfer applications
  • Pressure balancing system for consistent, even pressure
  • Thick cast aluminum heat plate for even temperature distribution
  • Compatible with over 10 optional interchangeable lower platens
  • Includes Teflon cover on the heat plate
  • CE & UKCA approved
  • Model: TF-1620CP-V2-S
  • Electrical: 110V, 1800w, dedicated circuit
  • Time Range: 0-999sec
  • Platen: 16” x 20”
  • Controller: LCD
  • Max Temp: 232°C (450°F)
  • Temperature Accuracy: ±4 °F / 2 °C
  • Max. Pressing Force: 793 lbs
  • Working Style: Lever Mechanism & Magnetic
  • Stand-by Feature: Max. 120 mins
  • Accept Thickness: ≤0.39"
  • Dimensions (L x W x H): 30" x 24.6" x 19"
  • Packaging (L x W x H): 30.5" x 25" x 20"
  • Product Weight: 110 lbs
  • Shipping Weight: 114 lbs
  • Certificate: CE,UKCA
  • 1 year including all parts
  • All heat presses must be delivered to an RB Digital location for repairs or customer can work remotely with a technician
  • It's recommended to keep crates and packaging to ship back if needed
