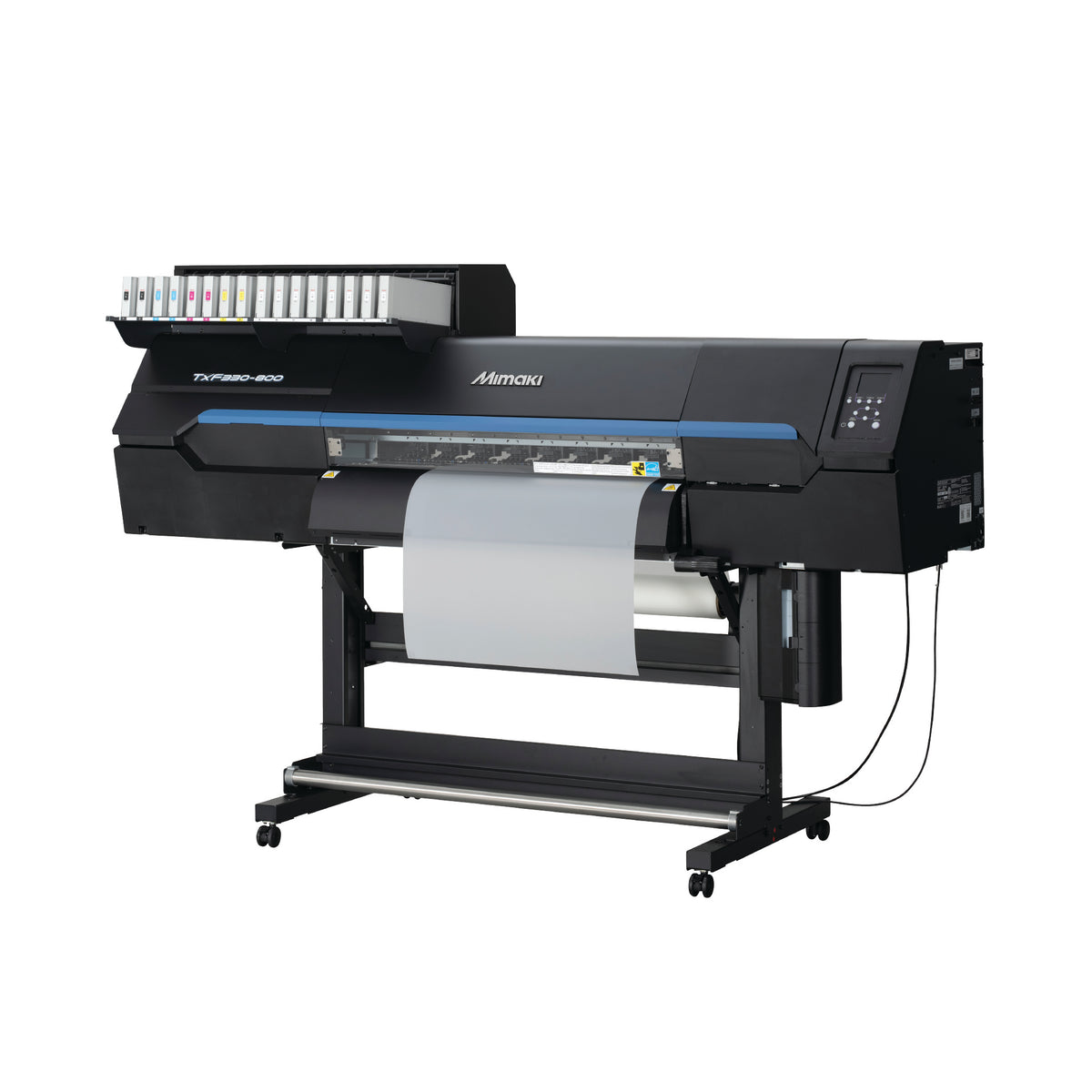

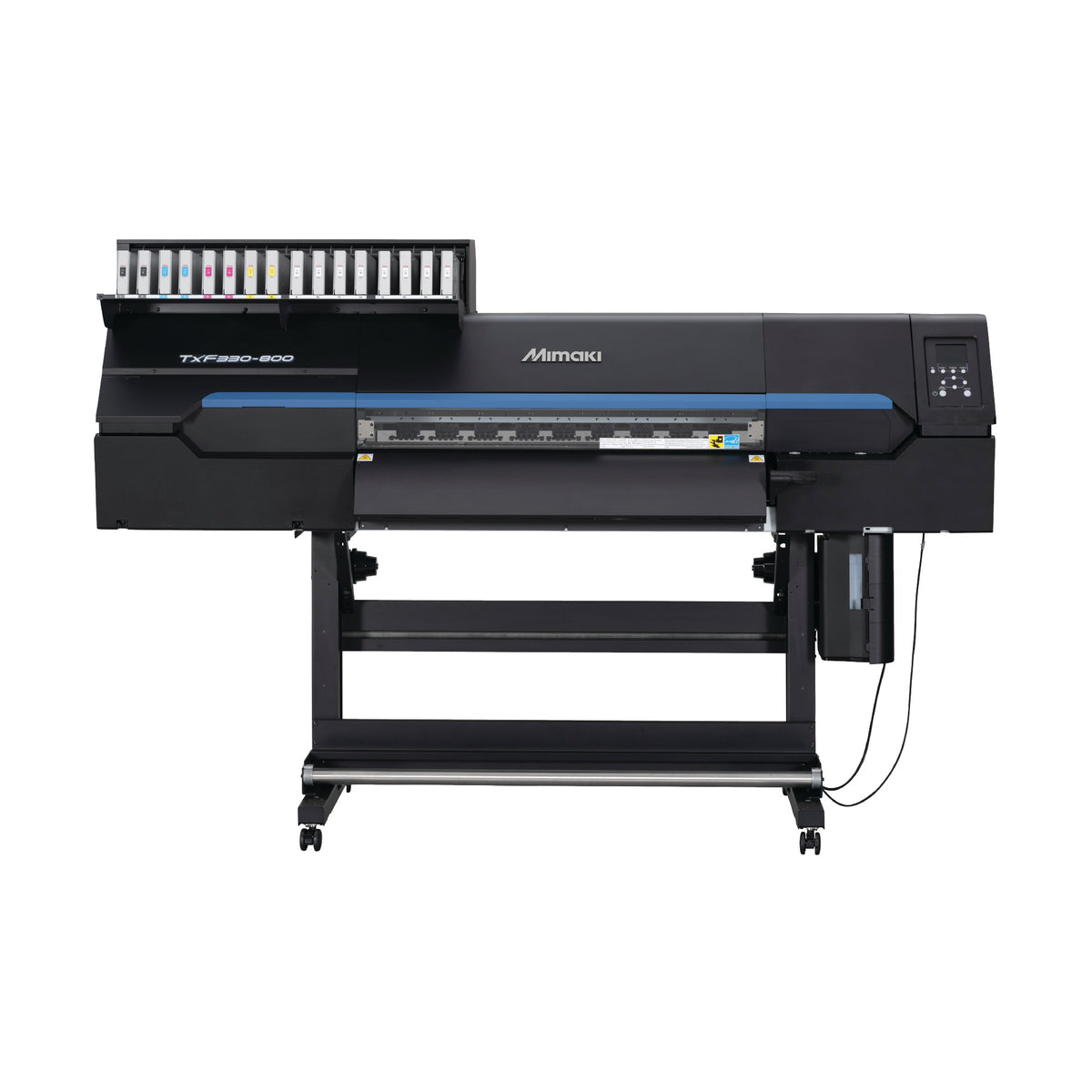

Mimaki TxF330-800 DTF Printing System

Mimaki TxF330-800 DTF Printing System - 24" Vacuum Powder Shaker (With Automatic Powder Recirculation) / Industrial Portable Fume Extractor

SKU:

Financing Options

The Mimaki TXF330-800 represents the next evolution of the 32" direct-to- film platform. Equipped with dual 330 print engines, it delivers higher productivity while maintaining outstanding image quality. A new 6-color ink set, including Sky Blue and Pale Pink, expands the color gamut for more vibrant and detailed output—ideal for apparel applications. The new colors have also been certified under ECO PASSPORT, which is required for compliance with the international OEKO-TEX® standard, ensuring they can be used safely.

Shaker Options
Fume Extractor Options

Product Resources

View full details

Often Purchased With

  • Mimaki Bulk Ink System
    MIMAKI BULK
    INK SYSTEM

    High-capacity ink supply for efficient production

  • Nozzle Check Unit
    NOZZLE
    CHECK UNIT

    Automatically detects clogged or missing nozzles

  • Mimaki Circulation Technology
    MIMAKI CIRCULATION TECHNOLOGY

    Keeps white ink circulating to reduce sedimentation

  • Waveform Control
    WAVEFORM CONTROL

    Precisely controls ink droplets for sharper prints

  • Mimaki Nozzle Recovery System
    MIMAKI NOZZLE RECOVERY SYSTEM

    Maintains production by compensating for faulty nozzles

  • High-Speed DTF Production




  • High-Speed DTF Production


    Produce more transfers with nearly twice the printing speed of the TxF150, helping meet growing production demands.




  • Reliable, Consistent Printing


    Automated white ink circulation, nozzle detection, and recovery technologies help reduce downtime and maintain print quality.

  • Reliable, Consistent Printing

Additional Information

  • 31.5" maximum print width for professional DTF production
  • High-density 330 Engine printheads for excellent image quality at high production speeds
  • Two ink configurations: 4-Color + White for productivity or 6-Color + White for expanded colour
  • Sky Blue and Pale Pink inks deliver more vivid blues, greens, pinks and reds
  • Up to 11.5 m²/h in Production Mode with the 4-Color + White configuration
  • MCT Version 2 white ink circulation helps stabilize white ink output and reduce ink waste
  • NCU automatic nozzle checking detects missing nozzles and initiates cleaning
  • NRS nozzle recovery allows production to continue using substitute nozzles when necessary
  • PHT50 heat-transfer pigment inks are ECO PASSPORT certified
  • RasterLink7 RIP software supports variable printing and special colour plate generation
  • Mimaki Remote Access (MRA) enables remote machine operation
  • PICT cloud monitoring provides access to operating status, ink usage and error information



Mimaki TxF330-800 Specifications
Print Head On-demand piezo head (2 staggered layout)
Printing Resolution X: 600, 1,200 dpi
Y: 600, 900, 1,200 dpi
Maximum Print Width 800 mm (31.5 in)
Ink
Ink Type Heat Transfer Pigment Ink PHT50
Ink Colours Cyan, Magenta, Yellow, Black, Sky Blue, Pale Pink, White
Ink Configurations 4-Color + White
6-Color + White
Ink Capacity Colour: 600 ml
White: 500 ml
Aluminum pack
Ink Circulation White ink circulation
Media
Maximum Media Width 810 mm (31.9 in)
Maximum Roll Diameter Φ250 mm (9.8 in) or less
Maximum Roll Weight 45 kg (99.2 lb) or less
Core Diameter 2 in / 3 in
Connectivity & Power
Interface Ethernet 1000 BASE-T, USB 2.0 Hi-Speed
Power Single-phase AC 100-120 V / 200-240 V ±10%, 50/60 Hz ±1 Hz
Power Consumption AC 100-120 V: 800 W or less
AC 200-240 V: 1.1 kW or less
Dimensions & Weight
Dimensions (W × D × H) 2,084 × 700 × 1,389 mm (82.0 × 27.6 × 54.7 in)
Weight 161 kg (354.9 lb)
Certifications
Certifications VCCI Class A, FCC Class A, ETL IEC 62368-1, CE Marking (EMC, Low Voltage, Machinery Directive and RoHS), CB, REACH, Energy Star, RCM, KC
Specification Details
Model Falcon Vortex Industrial Portable Fume Extractor (TC-TOYODA-FE-V2)
Rated Voltage 110V AC
Rated Current 1.6A
Rated Power 176W
Energy Consumption 0.18 kWh
Airflow Capacity 36 m³/h – 202 m³/h
Maximum Noise Level 65 dB
Machine Weight 49 kg (108 lbs)
Shipping Weight 72 kg (159 lbs)
Machine Dimensions (L × W × H) 451 × 490 × 1056 mm (18" × 19" × 42")
Shipping Dimensions (L × W × H) 605 × 545 × 1231 mm (24" × 21" × 48")
Mobility Heavy-Duty Casters
Control System Digital Touch Control Interface
Filtration System HEPA Filter & Activated Carbon Filter
Maintenance Features Oil Drain Port, Replaceable Filters
Recommended Application DTF Powder Shakers & Industrial Fume Extraction

Falcon Avalanche DTF Shaker Comparison

Model Falcon Avalanche
24-S		 Falcon Avalanche
24-V		 Falcon Avalanche
24-LV		 Falcon Avalanche
32		 Falcon Avalanche
32-V
SKU TC-TOYODA-24S TC-TOYODA-24V TC-TOYODA-24LV TC-TOYODA-32 TC-TOYODA-32V
Belt Width 24" 24" 24" 32" 32"
Belt Length 14.25" 22" 43" 22" 28"
32" Doorway Compatible Yes No No Yes (Split Design) No
Powder Re-Circulation Manual Automatic Automatic Manual Automatic
Built-In Fume Extractor No No No No No
Rated Voltage 220V 220V 220V 220V 220V
Rated Current 30A 24A 33A 20A 22.7A
Power Consumption 2.3–3 kW 3–5.2 kW 3–7.2 kW 4 kW 5 kW
Machine Weight 231 lbs 507 lbs 507 lbs 491 lbs 530 lbs
Shipping Weight 335 lbs 529 lbs 661 lbs 577 lbs 617 lbs
Footprint (L × W × H) 44" × 39" × 39" 64" × 36" × 39" 94" × 36" × 36" 66.5" × 46.2" × 39" 71" × 55" × 44"
Shipping Size (L × W × H) 44" × 34" × 44" 56" × 44" × 44" 77" × 44" × 44" 56" × 53" × 43.8" 66.5" × 50.6" × 39"
