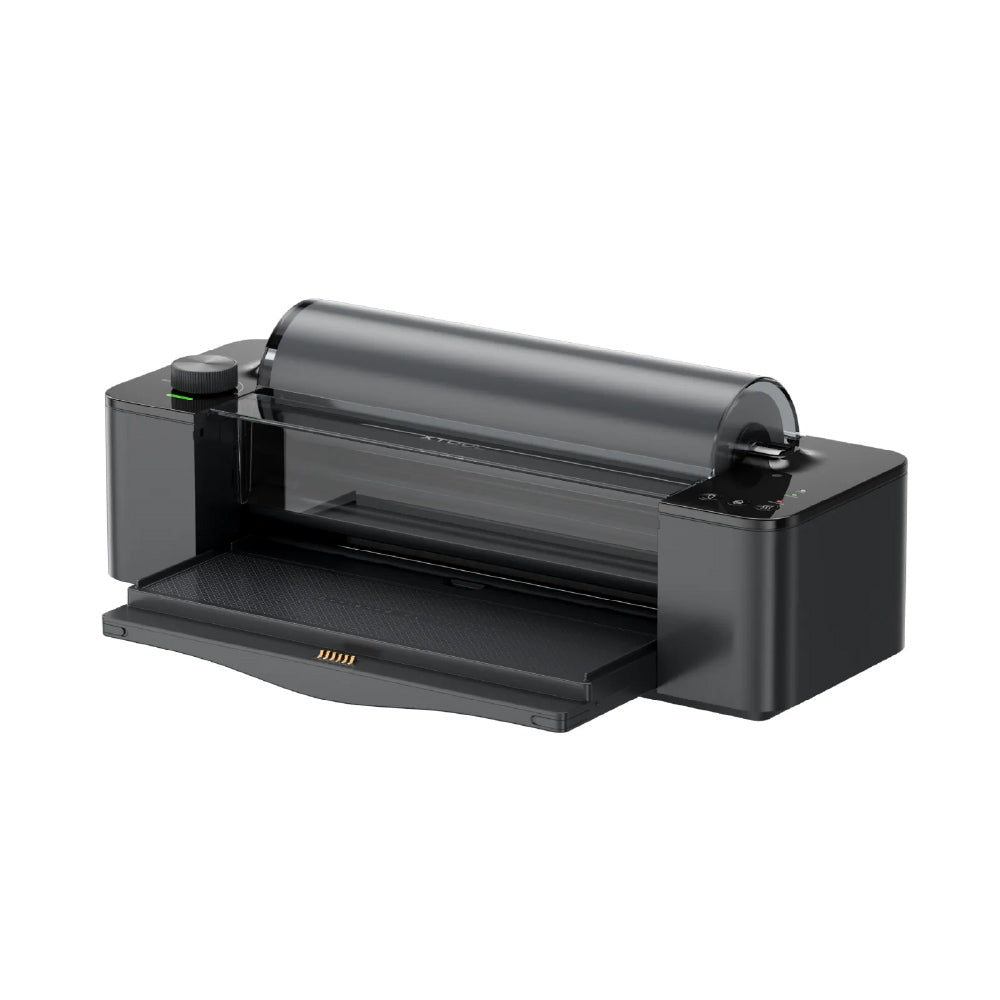

xTool LM1 Laminator and RF1 Roll Feeder for O1 Omni Printer

xTool LM1 Laminator and RF1 Roll Feeder for O1 Omni Printer - xTool LM1 Laminator

SKU:

$549.00 CAD
$405.00 CAD $549.00 CAD
Sale Sold out
The cost of shipping will be determined after you complete your purchase.

Available for Preorder

This product is currently available for preorder, with shipping expected to begin in early November.

This xTool product qualifies for FREE STANDARD SHIPPING when purchased individually.  Any special delivery requirements, such as after-hours delivery or tailgate services, will be invoiced separately. To receive free shipping, xTool items must be the only products in your cart at checkout. Additional items must be purchased separately.

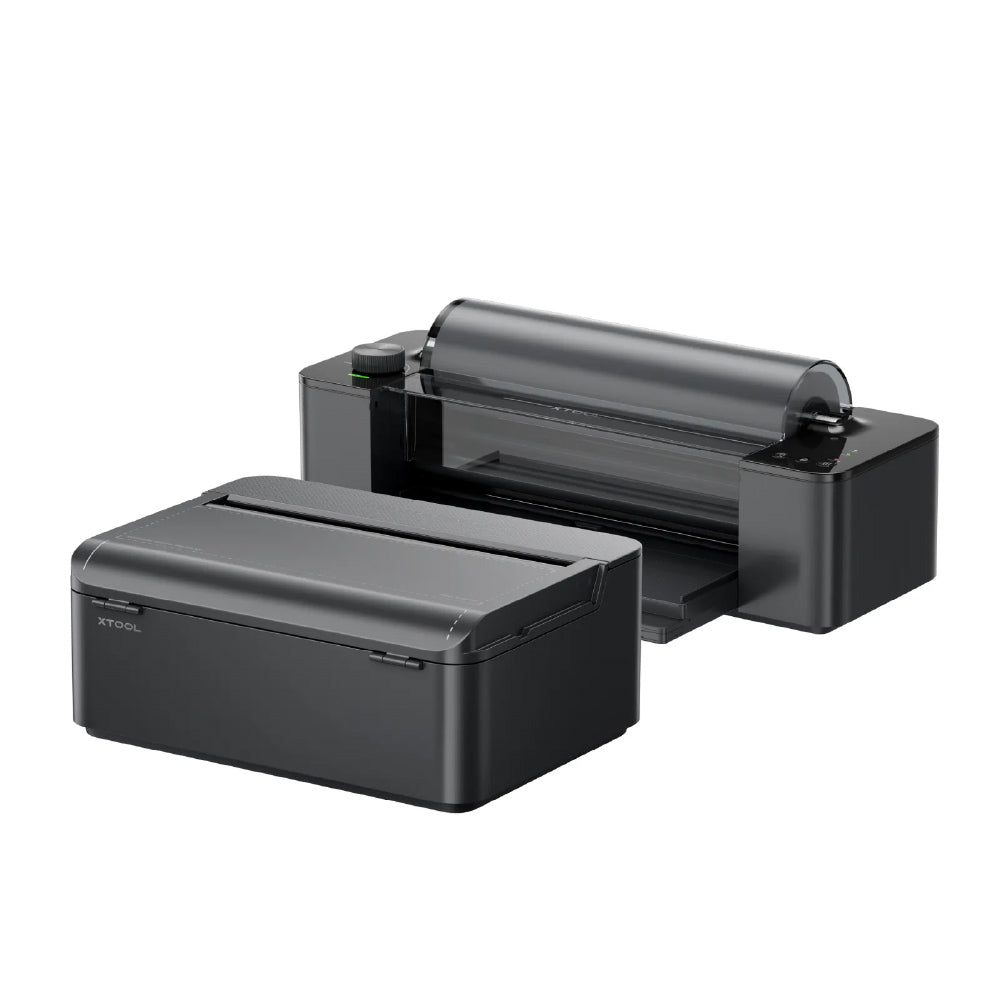

The xTool LM1 Laminator & RF1 Roll Feeder transforms your xTool Omni Printer into a complete roll-to-roll production system, unlocking professional UV DTF finishing, long-format printing, foil effects, and automated batch production from one integrated workflow.


The LM1 Laminator produces ready-to-apply UV DTF transfers while also enabling premium gold, silver, and holographic foil finishes on compatible flat materials. Pair it with the RF1 Roll Feeder to automatically print, laminate, and cut UV DTF decal rolls up to 49.2 feet long, making it easy to produce labels, stickers, branding graphics, window decals, banners, and other long-format applications with minimal operator intervention.

With intelligent one-click layout, automatic cutting, and support for a wide range of roll media, the LM1 and RF1 accessories expand the capabilities of the xTool Omni Printer, helping creators and businesses increase productivity while offering more products from a single machine.


Compatible with xTool Omni Printer

Package
• Special Order
disabled
This product is typically ready for pickup or shipping within one week, subject to lead times provided by manufacturers.
The xTool LM1 Laminator and RF1 Roll Feeder for O1 Omni Printer is a made-to-order product that is only assembled and prepared for shipment after you place your order. Please note that freight costs are not included in the purchase price. After your purchase, we will contact you to confirm shipping details, provide a shipping quote, and give you the lead times from the manufacturer. Upon payment of the shipping invoice, we will arrange delivery as per your preferences. For additional information, connect with a RB Digital sales specialist today.
View full details

Often Purchased With

Additional Information

Specification Details
Product xTool LM1 Laminator & RF1 Roll Feeder
Compatible Printer xTool Omni Printer
Primary Functions UV DTF Lamination, Roll Feeding, Foil Finishing, Automated Batch Production
Maximum UV DTF Roll Production 49.2 ft (15 m)
Maximum Long Media Printing 38.7 ft (11.8 m)
Maximum Roll Material Length 49.2 ft UV DTF Film
42.7 ft Canvas & Vinyl
Lamination Width 12.2" (310 mm)
Supported Lamination Thickness 0"–0.31" (0–8 mm)
Supported Lamination Films B Film, Waste-Removal Film, Foil Film
Supported Finishing UV DTF, Waste-Removal, Gold Foil, Silver Foil, Holographic Foil
Lamination Speed 0.39"/sec (10 mm/sec)
Preheating Time 90 Seconds
Supported Media Width 3.9"–12.2" (100–310 mm)
Supported Media Thickness 0.004"–0.024" (0.1–0.6 mm)
Compatible Core Size 3"
Maximum Roll Diameter 3.5" (90 mm)
Maximum Roll Weight 9.1 lbs (4.1 kg)
Compatible Media A Film, Canvas, Static Cling Vinyl, Ultra-Clear UV Vinyl, Polymeric Vinyl
Power Supply AC 110V / 220V
Laminator Dimensions 18.9" × 6.4" × 6.8"
Roll Feeder Dimensions 14.3" × 10.6" × 5.7"
Laminator Weight 17.9 lbs (8.1 kg)
