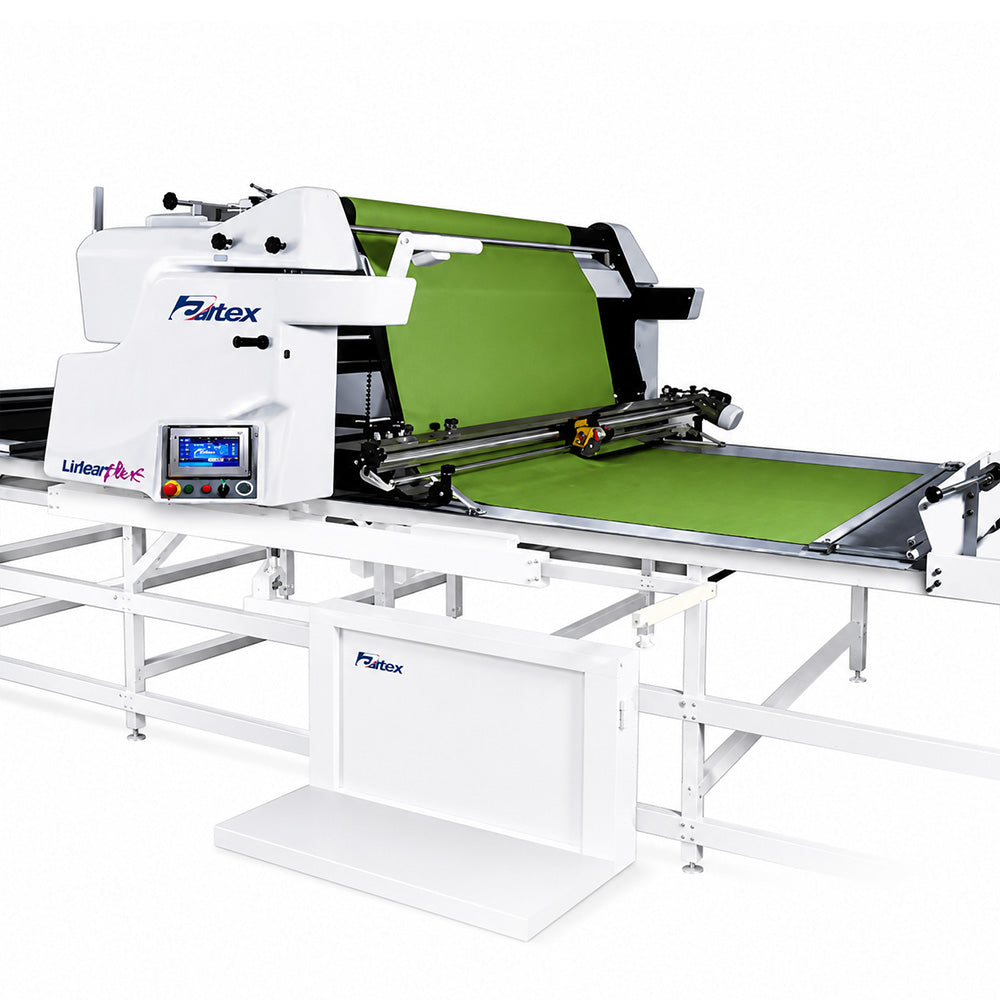

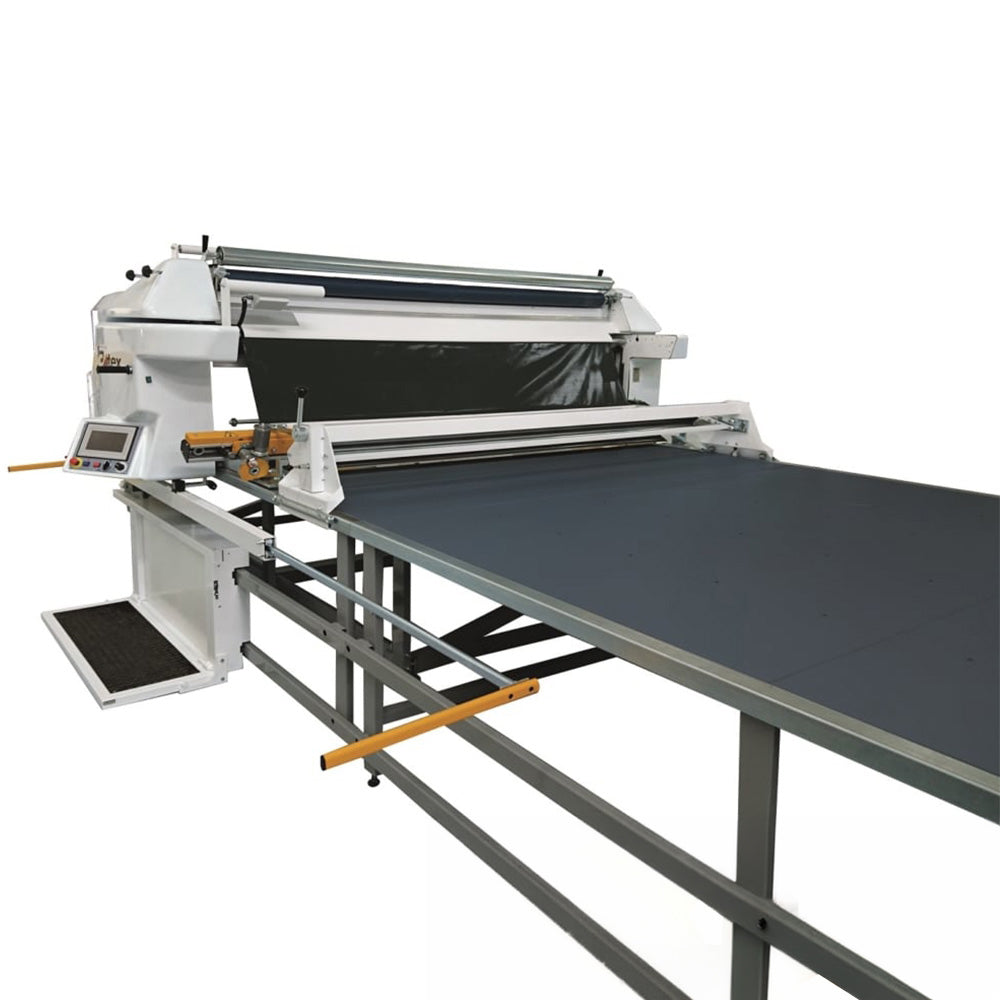

Autex Líder Plus (Fabric Spreading Machine)

Autex Líder Plus (Fabric Spreading Machine) - Default Title

SKU:

Financing Options

The AUTEX Líder Plus is an advanced automatic fabric spreading machine engineered to deliver exceptional speed, precision, and fabric quality across a wide range of textile applications. Featuring robotic technology, a unique dual-belt cradle feeding system, and AUTEX's exclusive Tension-Free System, the Líder Plus spreads everything from delicate stretch fabrics to heavier materials with outstanding accuracy while preventing distortion and marking. Designed for continuous production, the machine combines intelligent automation, high-speed operation up to 100 m/min, and an intuitive touchscreen interface to maximize productivity while meeting stringent European C.E. safety standards.

Product Resources

Afficher tous les détails

Features And Highlights



  • Tension-Free Fabric Spreading

    AUTEX's exclusive Tension-Free System eliminates tension during spreading, protecting elastic and delicate fabrics from stretching, distortion, and surface marks.

  • High-Speed Production

    Variable spreading speeds up to 100 metres per minute help maximize productivity while maintaining exceptional accuracy and fabric control.

  • Intelligent Automation

    Automated fabric threading, end-of-roll detection, programmable spreading modes, and automatic cycle restart reduce operator intervention and improve workflow efficiency.

  • Robotic Precision

    High-sensitivity infrared sensors and intelligent positioning systems ensure perfect fabric alignment and consistent spreading quality on every layer.

  • Versatile Fabric Handling

    Capable of spreading woven, knit, tubular, book-folded, and elastic fabrics using multiple spreading modes including normal, programmed, step, and zigzag spreading.

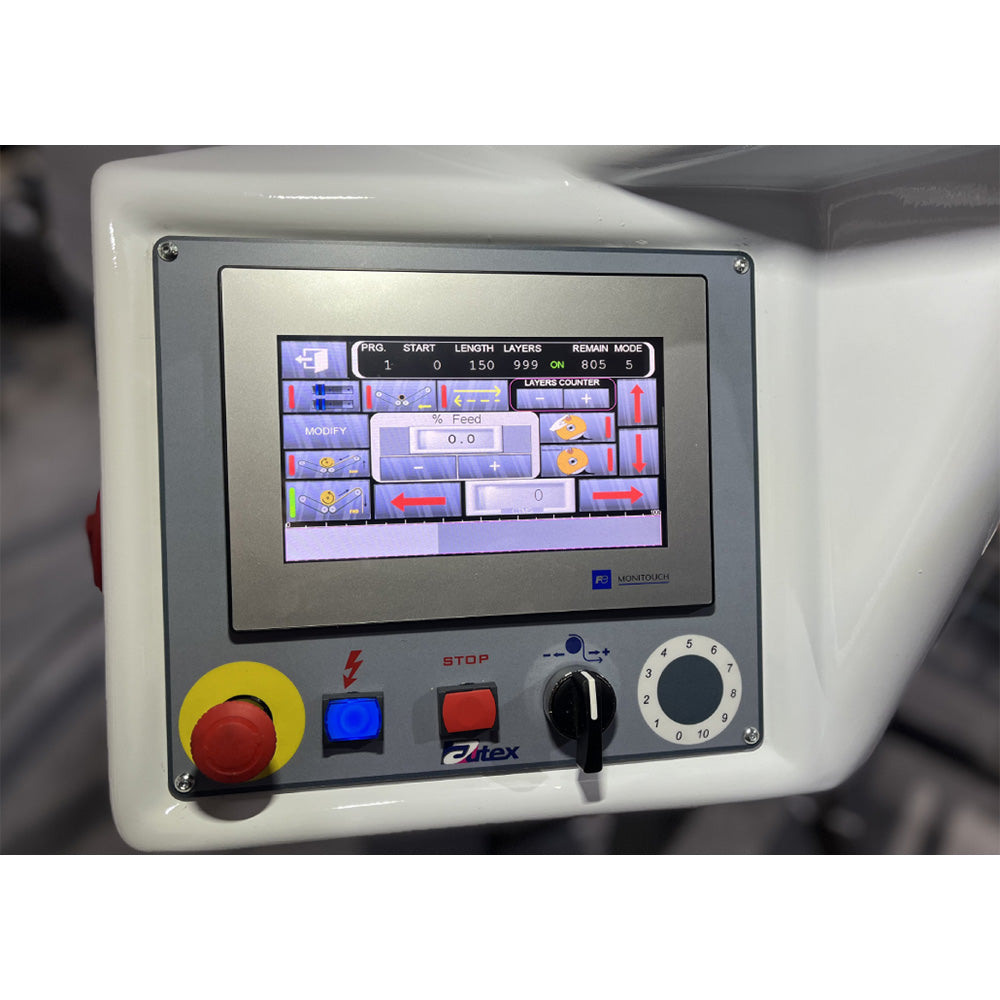

  • Advanced Touchscreen Controls

    A user-friendly digital touchscreen provides machine status, production data, programmable settings, and complete control over spreading operations.



Additional Information

  • Robotic fabric spreading technology
  • Automatic control and monitoring system
  • Variable spreading speed from 0–100 m/min
  • High-speed cutting synchronization
  • High-sensitivity infrared fabric sensor
  • Automatic end-of-roll detection with return-to-load position
  • Automatic spread height detection
  • Four-wheel drive system
  • Intelligent control handle

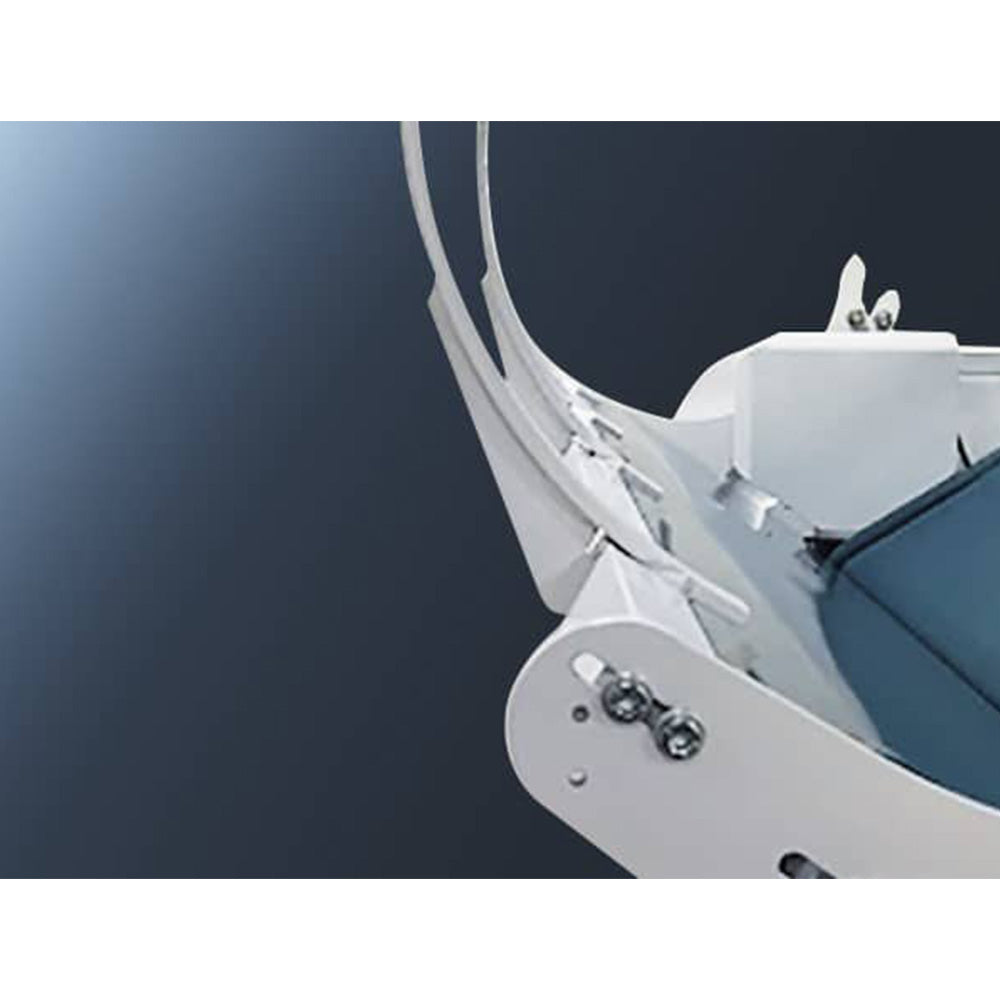

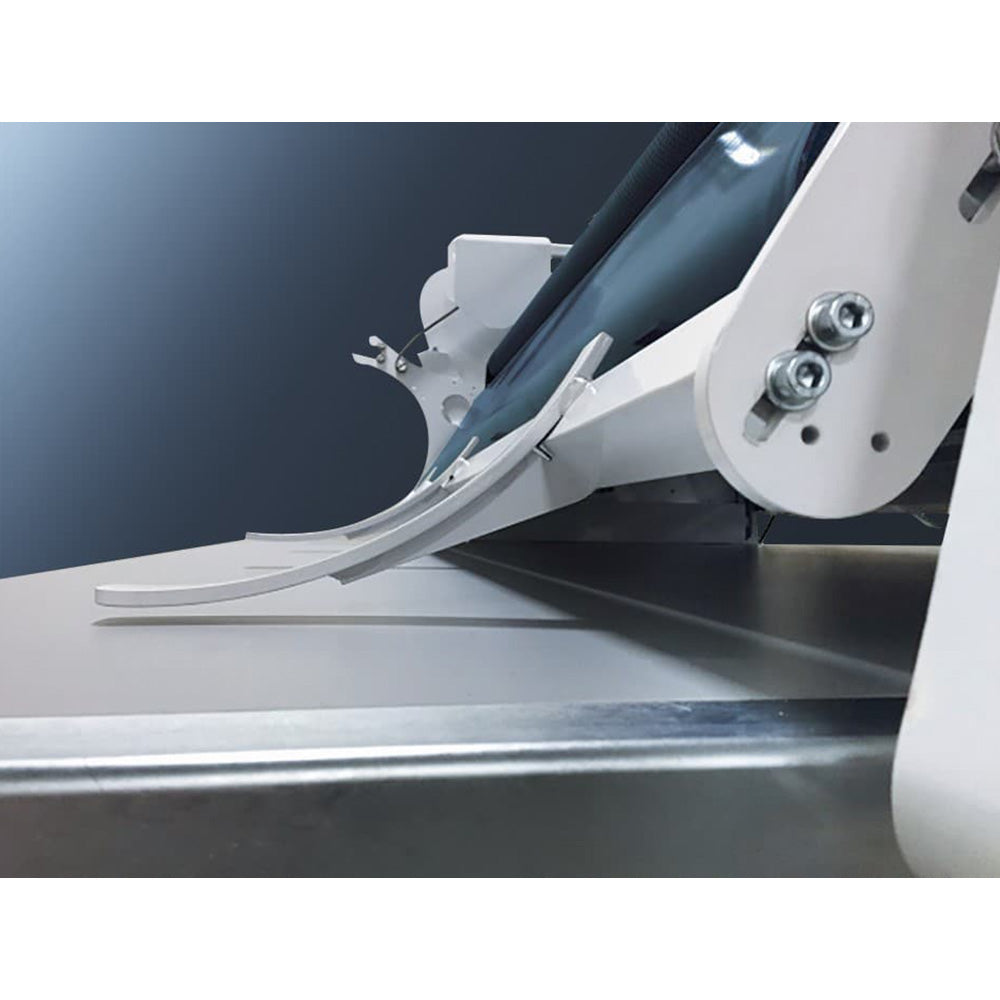

  • Dual-belt cradle feeding system
  • Single continuous conveyor belt to eliminate fabric marking
  • Roll bar loading option without cradle
  • Automatic fabric threading and unthreading
  • Fabric rewinding to remove defects or colour variations
  • Reverse spreading capability
  • Programmable feeding system
  • Automatic fabric feeding
  • Self-adjusting braking system
  • Adjustable acceleration
  • Emergency safety brake for power failures
  • Digital touchscreen with production statistics and programmable parameters
  • Supports normal, programmed, scale, and zigzag spreading modes
  • C.E. compliant safety design
  • EWON remote diagnostics and technical support
  • Zigzag spreading

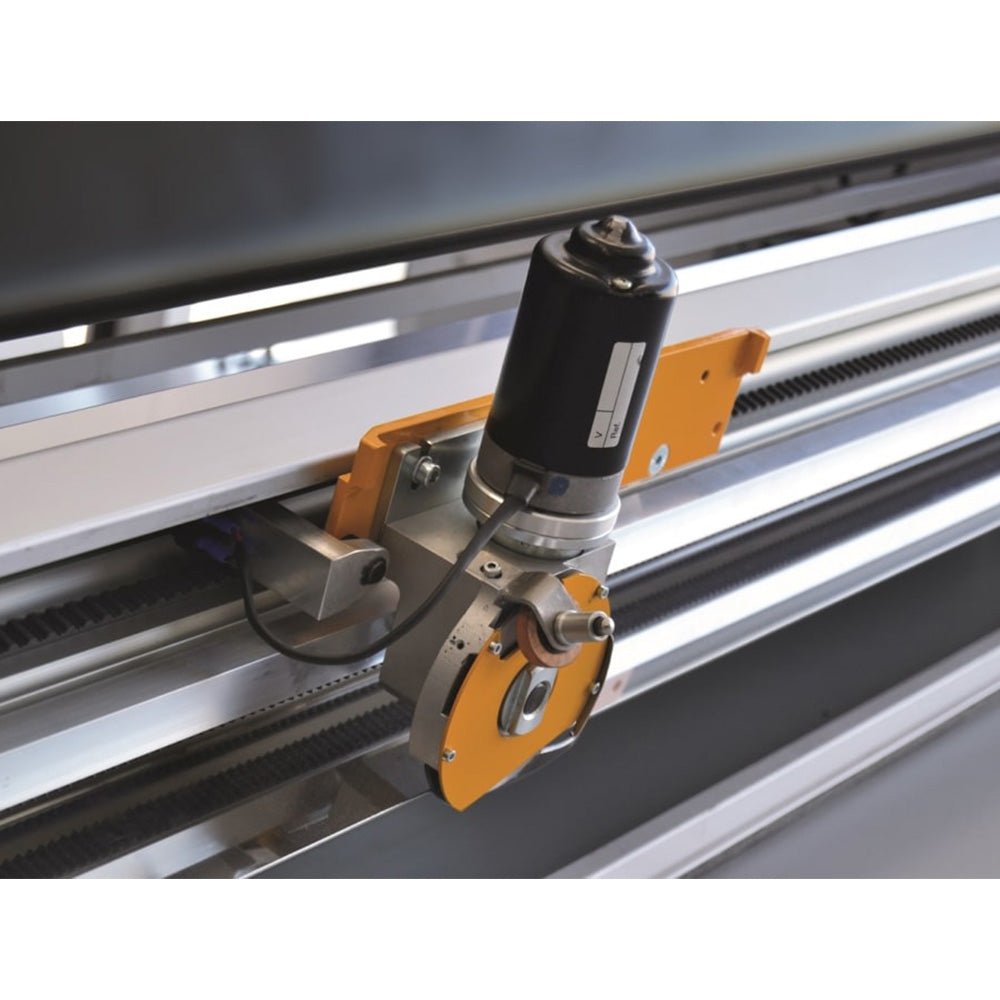

  • High-speed cutting with adjustable end clamp
  • Tubular fabric spreading
  • Book-fold fabric spreading
  • Double feeding system for roll spreading
  • Book folder tray
  • Fast roll loading system
  • Smooth, air flotation, vacuum, and conveyor cutting tables
  • Manual transfer tables
  • Rail-guided transfer tables
  • Motorized rail transfer tables
  • Operator platform and guide rails
  • Maximum spreading speed: 100 m/min
  • Maximum recommended roll weight: 100 kg
  • Maximum roll diameter: 600 mm
  • Maximum spreading height: 220 mm
  • Maximum manual loading height: 0.9 m
  • Power consumption: 2.6 kW
