Filtre secondaire DTF pour extracteur de fumée DTF

Filtre secondaire DTF pour extracteur de fumée DTF - Default Title

SKU:

$105.00 CAD
$105.00 CAD
Vente Épuisé
Frais d'expédition calculés à l'étape de paiement.

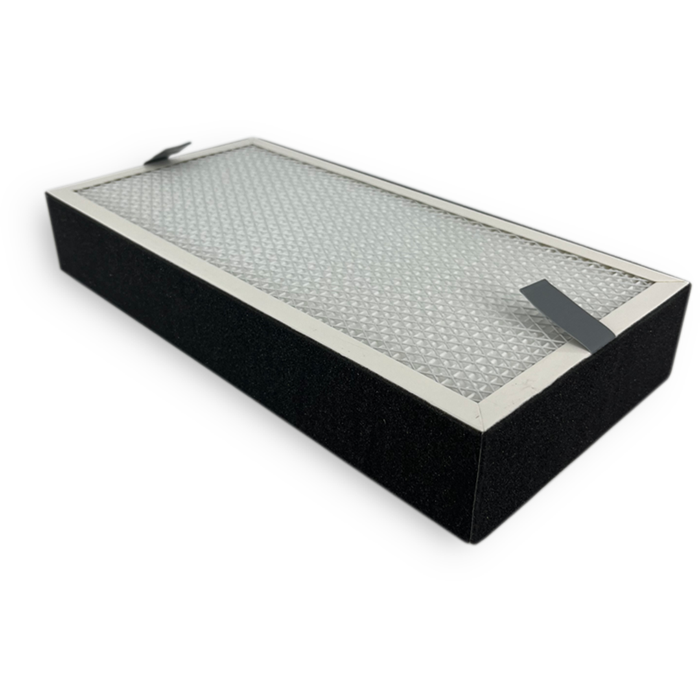

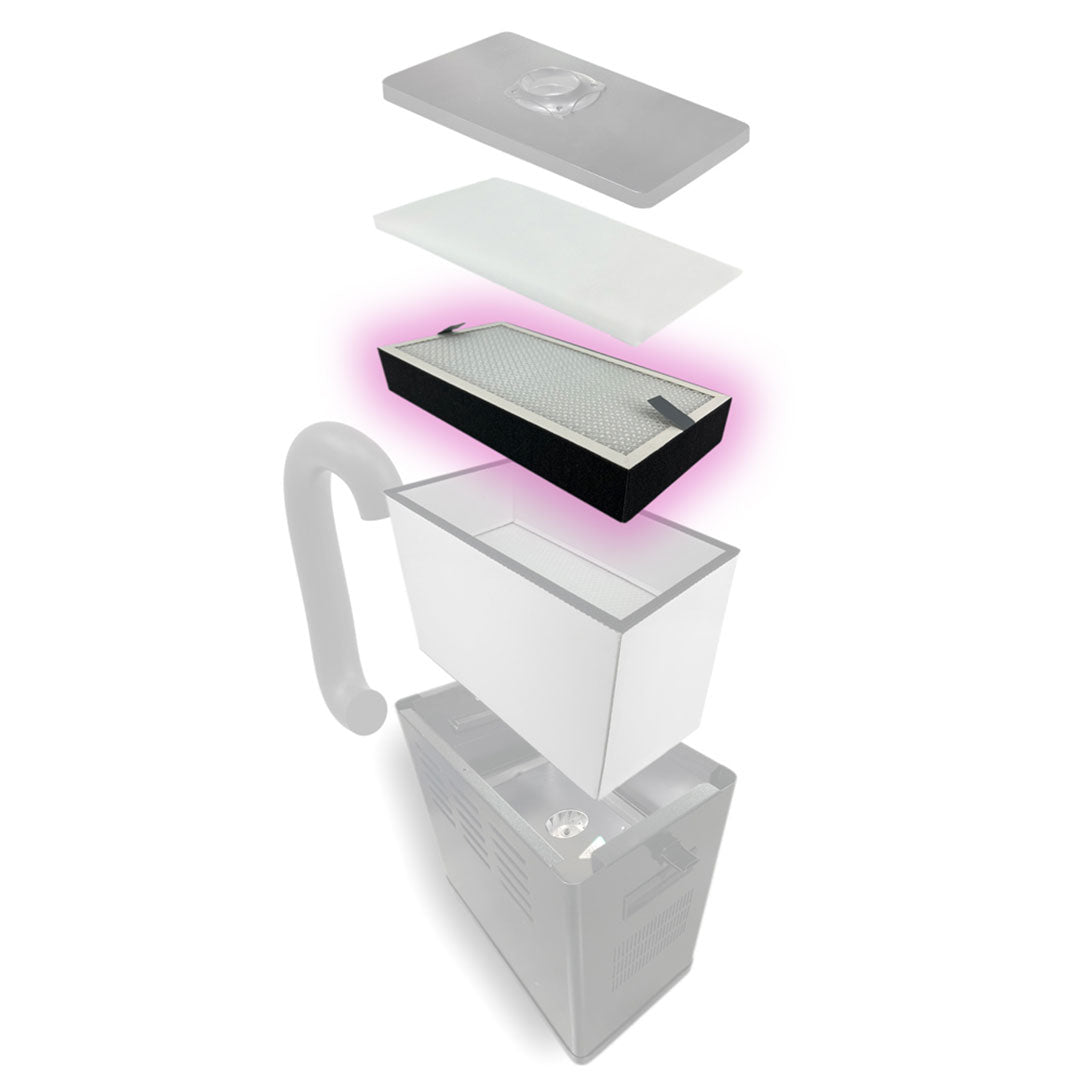

Le filtre secondaire DTF ne résiste pas seulement à l'humidité, il est également extrêmement solide et évacue l'excès de liquide pour offrir une barrière parfaite au brouillard DTF. Le média filtrant est enfermé dans une cartouche rigide en aluminium pour éviter le contournement de la contamination. Le média filtrant mini-pli à grande surface assure une grande capacité et une efficacité élevée pour les petites applications. (Durée de vie du filtre - 3-4 mois)



Fonctionne avec notre extracteur de fumée portable DTF qui est doté d'un seul ventilateur et d'une filtration HEPA hydrophobe à 3 étapes pour une excellente performance d'élimination du brouillard dans un micro format. Idéal pour les petits systèmes d'impression de transfert DTF rouleau-à-rouleau (largeur de 11 à 14 pouces). Il capture le brouillard épais et huileux généré pendant le durcissement des transferts imprimés. Produisez des transferts de qualité pour les vêtements et autres substrats dans un environnement d'air pur - vos produits et vos employés en bénéficieront !

In stock

disabled

Product Resources

Afficher tous les détails

Souvent achetés avec

Additional Information

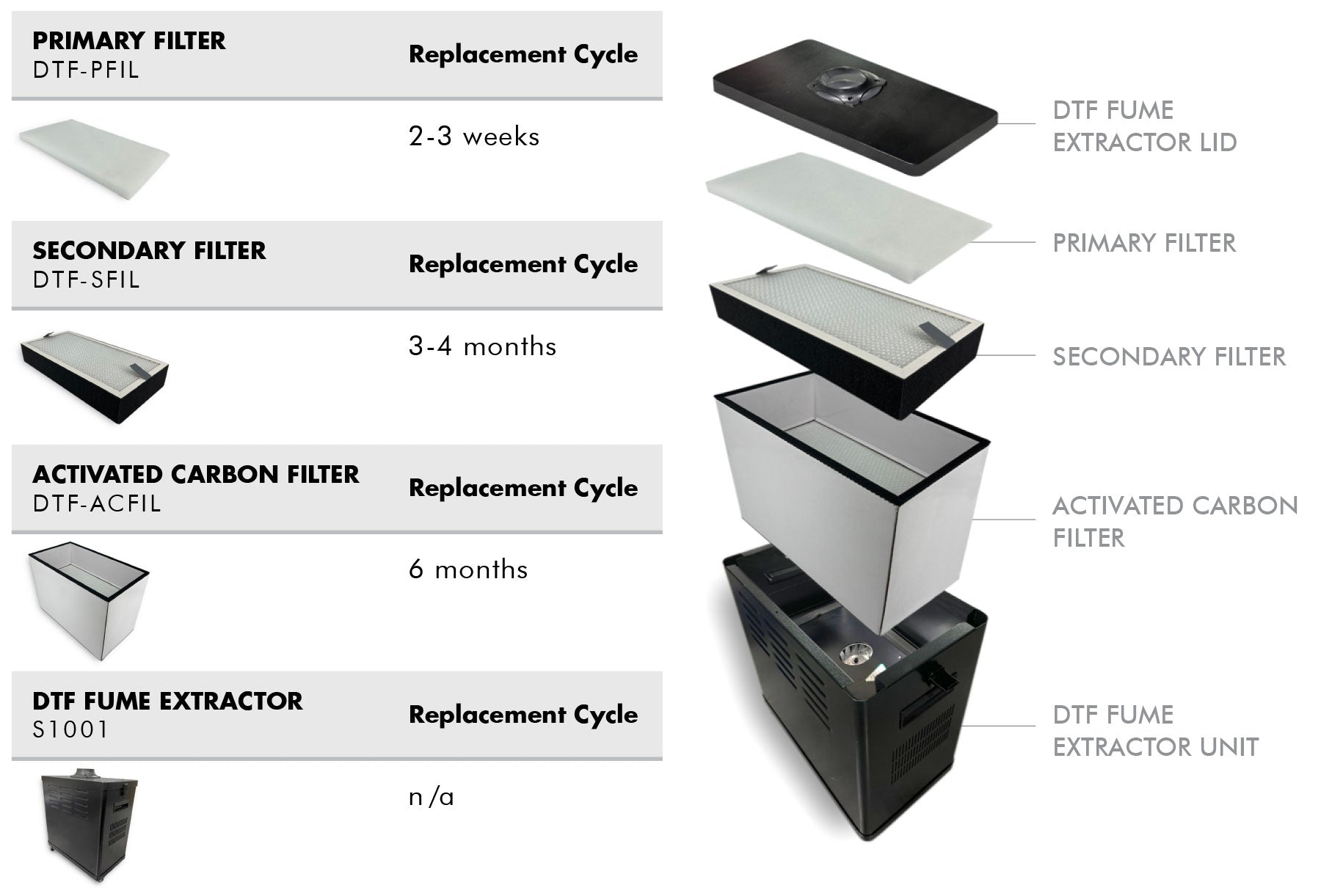

Different processes emit different proportions of particles vs. VOC gases. With individually separated filters, each filter can be replaced when it actually is spent. In contrast, in a combined filter where the HEPA and Gas filters are inseparable, the barely used HEPA filter portion may have to be sacrificed because the gas portion is spent (or vice-versa). This is wasteful and less economic.

The process starts with a DTF printer laying down specialized inks onto special plastic PET films. These films are known as DTF Transfer Films. Then, DTF hot-melt adhesive powder, a white granular product, is applied to the printed transfer film. The powder is evenly applied to the film with a powder shaker. The powder only sticks to the areas that have ink on them. The powder shaker literally shakes off the excess powder off the film. The film is then transported into a small curing oven that is used to melt and bind the hot melt powder onto the transfer film. The hot-melt adhesive does not actually release fumes at this stage because of the nature of the thermoplastic adhesives used.

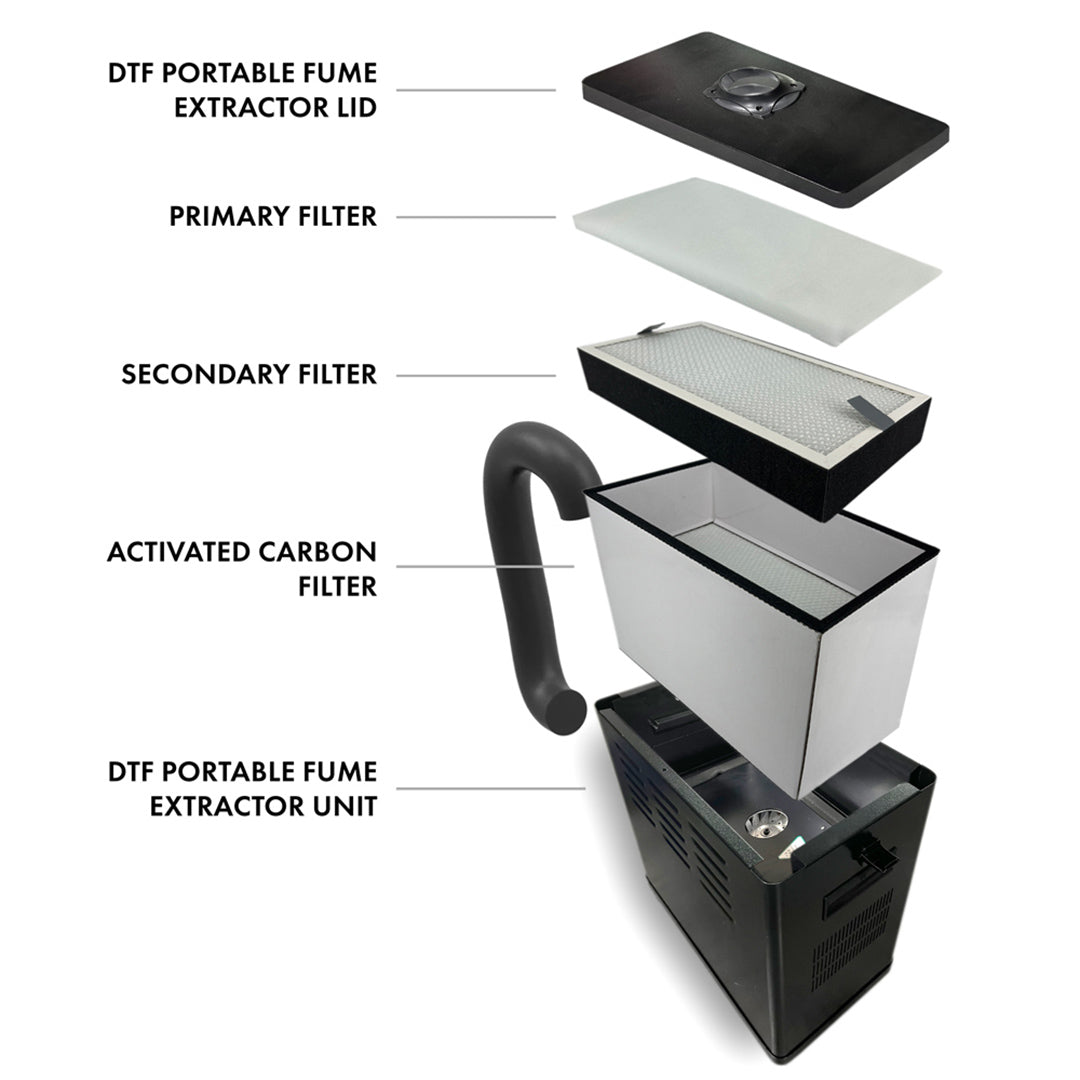

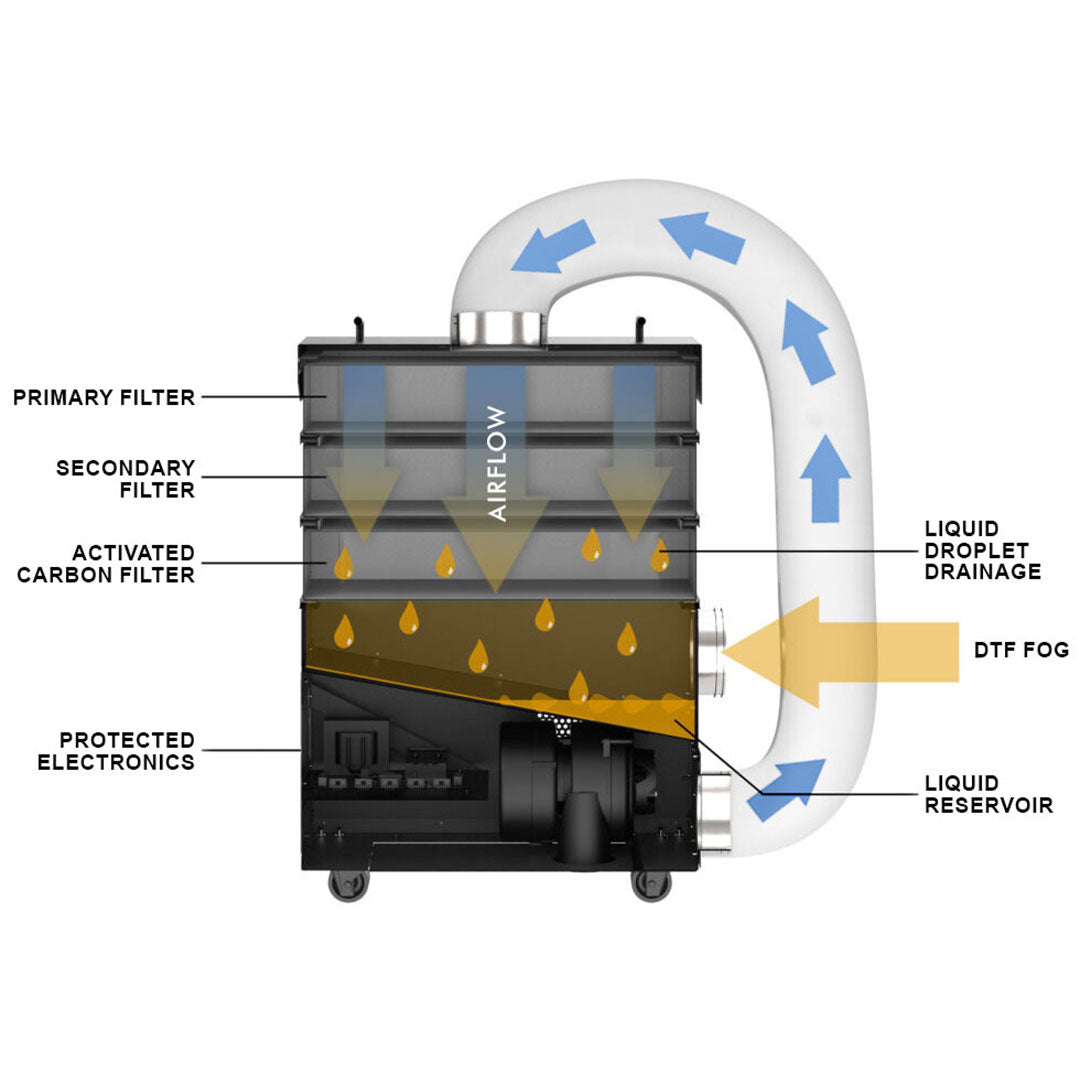

However, the oven boils away the excess liquid from the inks and creates a fog. The dense, oily fog is made up of a concentration of tiny liquid droplets. This is where fume extraction is required. Our DTF portable fume extractors are specifically designed to capture these microscopic droplets. This is necessary to keep the work environment, product and equipment clean and fog-free. Our DTF portable fume extractor features reinforced liquid-resistant prefilters and Hydrophobic HEPA filters for efficient and reliable removal of fog particles. A liquid reservoir is built into each fume extractor to capture excess liquids that build up within the system which then can be drained at your convenience.



Once the transfer film is complete with ink and adhesive layers applied and oven cured, a Heat Press is used to transfer the designed embellishment onto fabric or garment without any additional release of fumes.

WORK IN A WELL VENTILATED AREA and use Protective Equipment when working with DTF products and processes as fumes may be hazardous. DTF inks and film require a good humidity environment - over 40% humidity is highly recommended to minimize risk of ink clogs and film buckling.
