Mimaki LAR-63 Heat Assist Laminator

Mimaki LAR-63 Heat Assist Laminator - LAR-63 (63" Wide)

SKU:

Financing Options

SPECIAL PROMOTION: Get the Mimaki LAR-63 Roll-to-Roll Laminator for just $4,000 (regularly $11,750) when purchased with an eligible Mimaki printer. Request Promo Details

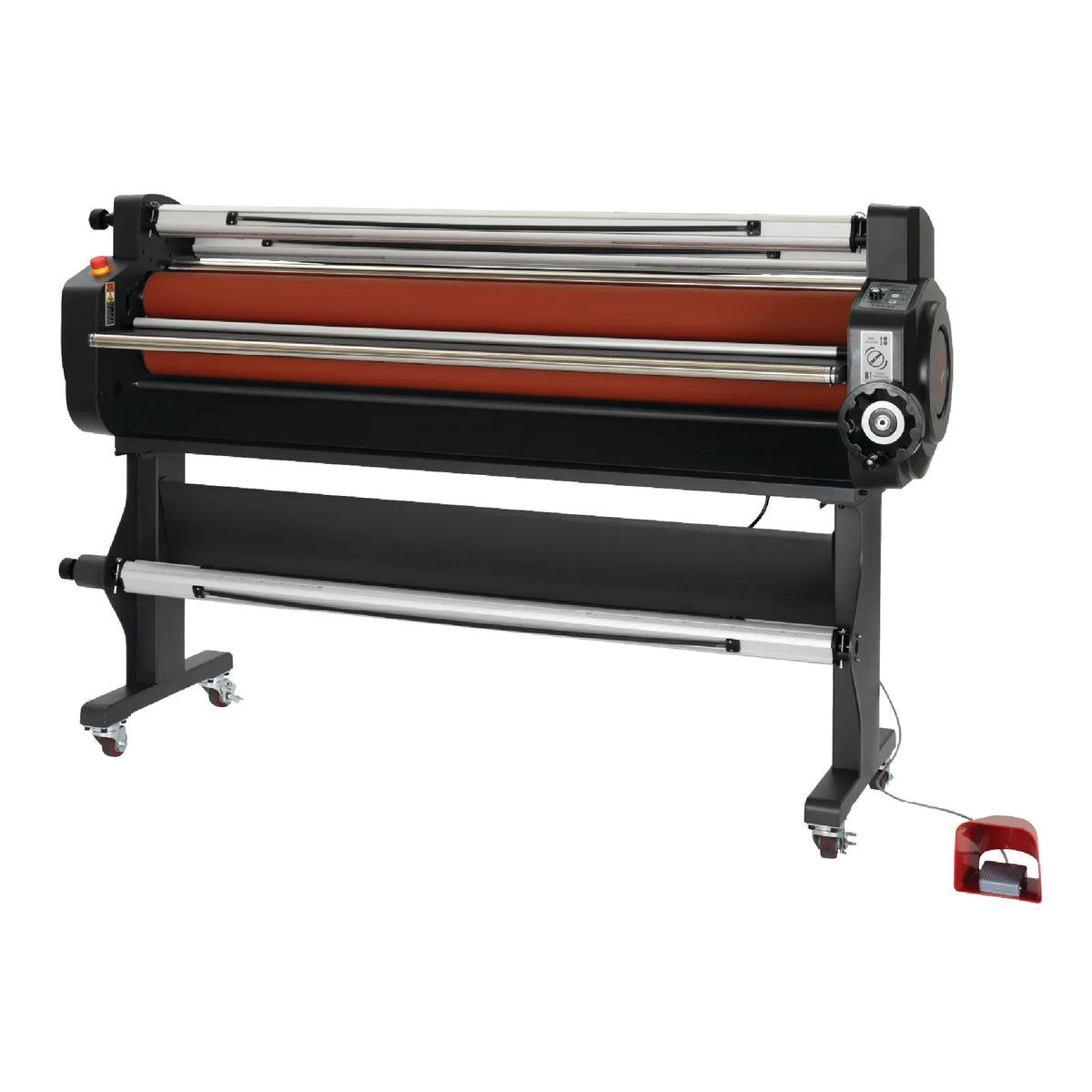

The Mimaki LAR-63 Roll-to-Roll Laminator is a professional 63" heat-assisted laminator designed to deliver smooth, consistent finishing for wide-format printed graphics. Its heated upper roller improves overlaminate adhesion and helps reduce silvering, producing clear, vibrant results across a wide range of applications.



With laminating speeds up to 24.6 ft/min, adjustable temperature and pressure, and an integrated media take-up system, the LAR-63 streamlines finishing while supporting efficient one-person operation. Designed to complement Mimaki roll-to-roll printers, it provides a reliable solution for protecting and enhancing signage, graphics, and other printed materials.

Model

Product Resources

Afficher tous les détails

Souvent acheté avec

  • 63" laminating width
    63" LAMINATING WIDTH

    Professional wide-format finishing

  • Heat-assisted lamination
    HEAT-ASSISTED LAMINATION

    Improved adhesion with reduced silvering

  • High-speed operation
    HIGH-SPEED OPERATION

    Laminate up to 24.6 ft/min

  • Adjustable temperature
    ADJUSTABLE TEMPERATURE

    Precise heat control up to 140°F

  • Adjustable pressure
    ADJUSTABLE PRESSURE

    Fine-tune pressure for consistent results

  • Automatic meda take-up
    AUTOMATIC MEDIA TAKE-UP

    Efficient, one-person operation



  • Smoother finishes. Better Adhesion.




  • Smoother Finishes. Better Adhesion.


    The heat-assisted upper roller reaches temperatures up to 140°F (60°C), improving film adhesion while helping reduce silvering. Achieve clear, professional-quality finishes that preserve the appearance of your printed graphics.




  • Designed for Efficient Production


    Keep jobs moving with laminating speeds up to 24.6 ft/min and an integrated media take-up system. Simple temperature, speed, and pressure adjustments make everyday operation efficient and convenient.

  • Design for efficient production

Additional Information

  • 63" Laminating Width: Accommodates wide-format graphics and roll media.
  • Heat-Assisted Upper Roller: Reaches up to 140°F (60°C) to improve film adhesion.
  • Reduced Silvering: Helps minimize the appearance of trapped air beneath pressure-sensitive overlaminates.
  • High-Speed Lamination: Maximum processing speed of 24.6 ft/min (7,500 mm/min).
  • Adjustable Temperature: Digital control panel allows adjustments in 1°C increments.
  • Variable Speed Control: Stepless speed dial for precise operation.
  • Adjustable Roller Pressure: Simple handle adjustment accommodates different finishing requirements.
  • Integrated Media Take-Up: Automatically collects laminated material for easier roll-to-roll production.
  • Enhanced Safety Features: Emergency stop and laser-based protection help reduce roller entrapment risks.
  • Mimaki Printer Compatibility: Designed to complement Mimaki roll-to-roll printing workflows.
Specification Details
Model Mimaki LAR-63
Equipment Type Heat-Assisted Roll-to-Roll Laminator
Dimension (W x D x H) 2,000 x 550 x 1,280 mm (78.7 x 21.7 x 50.4")
Weight 205 kg (451.9 lb)
Maximum Laminating Width 63" (1,600 mm approx.)
Maximum Processing Thickness 1.38" (35 mm)
Maximum Processing Speed 24.6 ft/min (7,500 mm/min)
Maximum Roller Temperature 140°F (60°C)
Heating System Heat-Assisted Upper Roller
Temperature Adjustment 1°C Increments
Speed Control Stepless Adjustment Dial
Pressure Adjustment Manual Handle Adjustment
Media Core Diameter 3"
Media Take-Up Integrated Automatic Take-Up System
Safety Features Emergency Stop, Laser-Based Safety Protection
