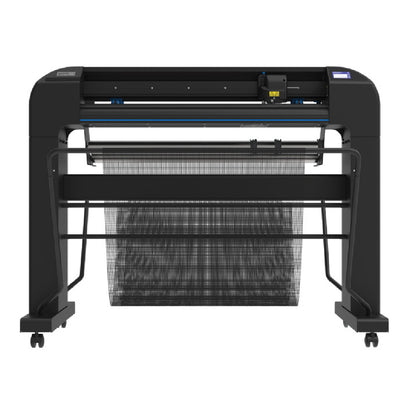

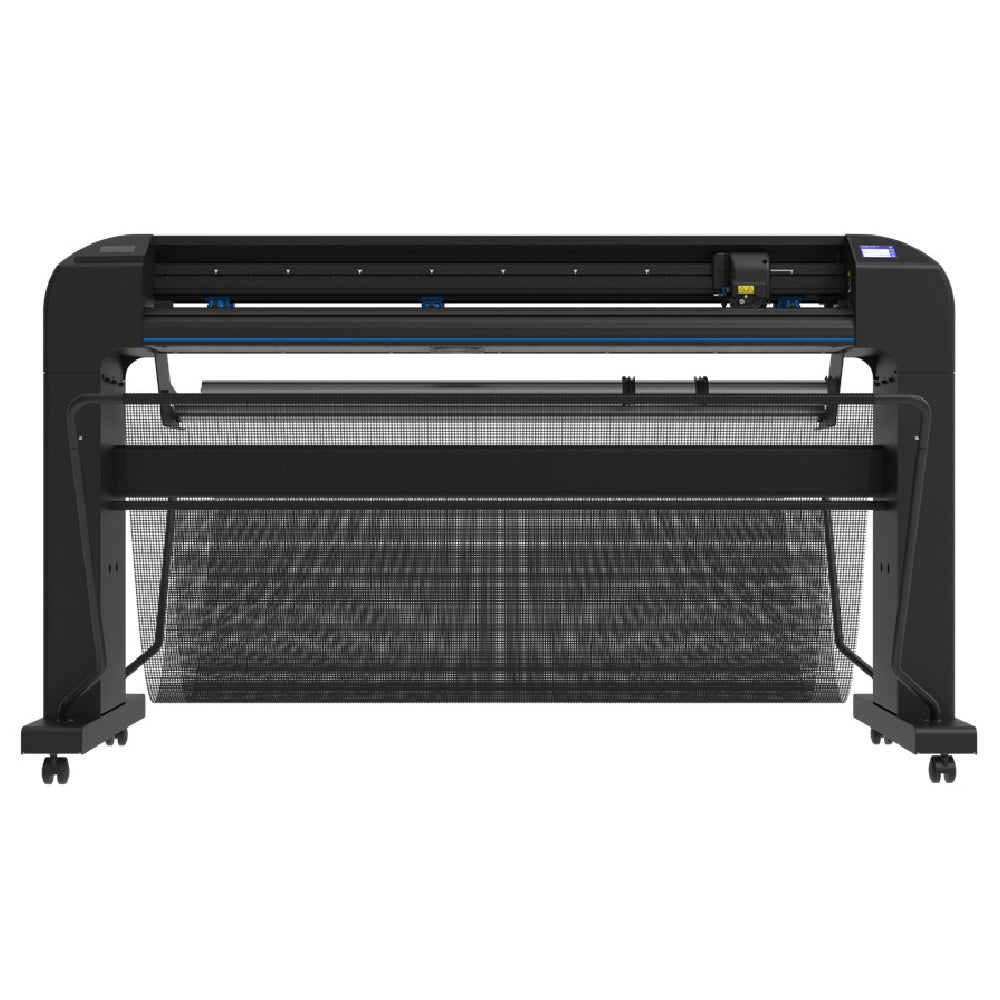

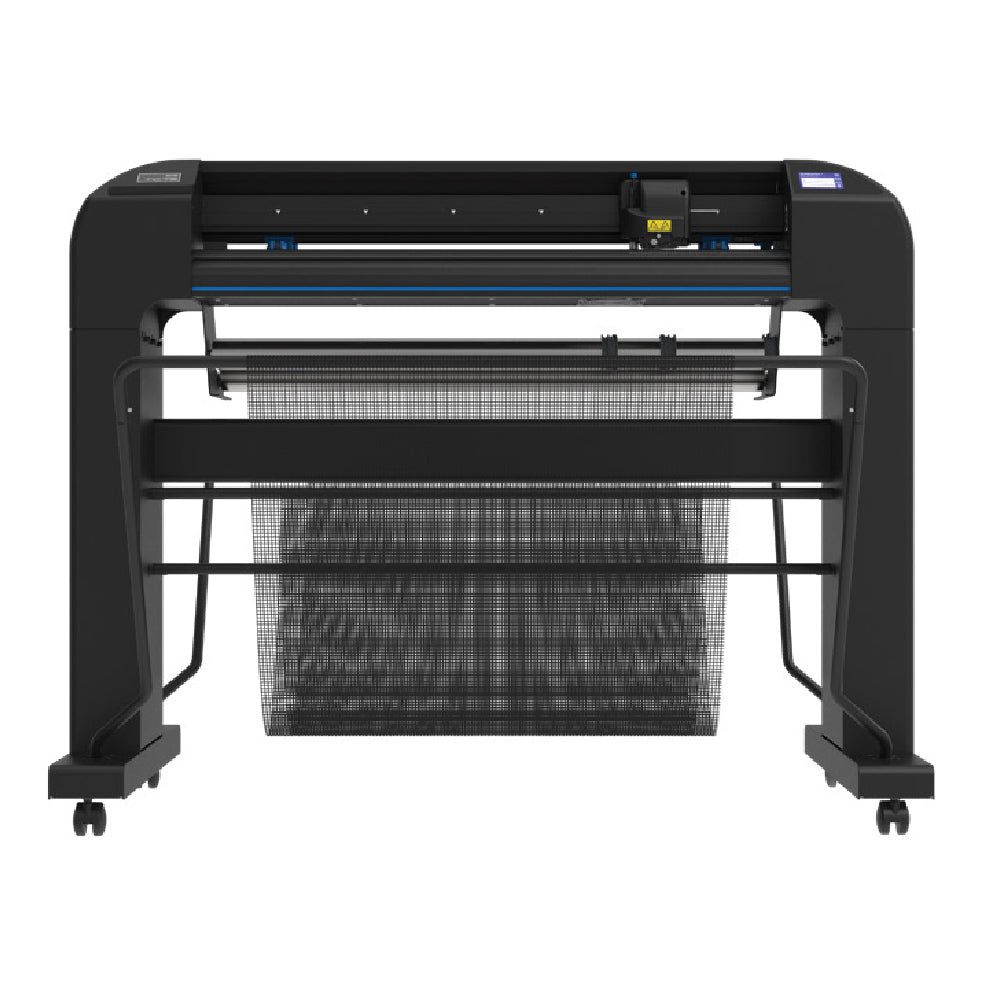

Summa S3TC DTF Cutter

Summa S3TC DTF Cutter - 29.2"

SKU:

Financing Options

The Summa S3TC75 / S3TC160 DTF Cutter is a professional tangential cutting solution engineered specifically for modern DTF print-and-cut workflows. Combining Summa's renowned cutting precision with advanced OPOS registration technology, barcode automation, and tangential knife performance, the S3TC75 / S3TC160 delivers accurate contour cutting with exceptional tracking over long production runs.



Purpose-built for DTF transfer production, the S3TC75 / S3TC160 seamlessly integrates with RIP software to automatically recognize print jobs, load cut files via barcode, and precisely align each transfer using OPOS camera technology. The included frictionless roll-feed system and roll-up unit help streamline unattended production while maintaining consistent media handling from start to finish.



Whether you're producing DTF transfers, heat transfer vinyl, labels, decals, or short-run packaging prototypes, the S3TC75 / S3TC160 offers the speed, precision, and automation needed to maximize productivity while reducing operator intervention.

Size

Product Resources

Afficher tous les détails

Souvent acheté avec

  • DTF Workflow Ready
    DTF WORKFLOW READY

    Built specifically for DTF production

  • Camera Alignment
    CAMERA ALIGNMENT

    Accurate contour cutting every job

  • Barcode Automation
    BARCODE AUTOMATION

    Automatically loads cut files

  • Tangential Cutting
    TANGENTIAL CUTTING

    Exceptional edge quality and precision

  • Wi-Fi & Ethernet
    WI-FI & ETHERNET

    Flexible production connectivity

  • DTF Production



  • Optimized for Long DTF Production Runs


    Designed to handle continuous roll-fed media with exceptional tracking accuracy, the S3TC75 / S3TC160 maintains precise contour alignment over long production runs. Combined with the frictionless roll-feed system and barcode automation, it helps maximize productivity while minimizing waste.



  • More Than Just a DTF Cutter


    Expand your capabilities beyond DTF production. The Summa S3TC75 / S3TC160 is equally at home cutting heat transfer vinyl, adhesive vinyl, decals, labels, window graphics, reflective films, paint masks, and other roll media. One cutter gives your business the flexibility to tackle a wide range of applications as your needs grow.

  • More Than Just a DTF Cutter

  • Frictionless Roll




  • Frictionless Roll Feed


    The included frictionless roll-feed system minimizes media resistance for smoother tracking and improved cutting accuracy on long DTF production runs.

Additional Information

  • Purpose-built for DTF print-and-cut workflows
  • Summa OPOS X optical registration system
  • Barcode job recognition for automated production
  • Tangential cutting technology for superior edge quality
  • Frictionless roll-feed system included
  • Roll-Up System 75 included
  • Handles media up to 29.2" wide
  • Oversized cutting mode available
  • Up to 1,440 mm/sec cutting speed
  • Up to 4.25 G acceleration
  • Drag knife or tangential knife compatibility
  • Up to 1,000 g tangential knife pressure
  • Ethernet, USB, and Wi-Fi connectivity
  • Summa GoSign Pro software included
  • Illustrator®, CorelDRAW®, and MacSign® workflow support
  • Ideal for DTF transfers, HTV, decals, labels, and contour cutting
Specification Summa S3 TC 75 DTF Summa S3 TC 160 DTF
Machine Type Tangential Roll Cutter for DTF Workflows Tangential Roll Cutter for DTF Workflows
Maximum Media Width 2.4" – 33" (6 – 84 cm) 6.7" – 66.1" (17 – 168 cm)
Maximum Cutting Width 29.2" (74.2 cm) 62.2" (158 cm)
Maximum Tracking Length 164 ft (50 m) 164 ft (50 m)
Oversized Cutting Mode +2.8" (±7 cm) +2.8" (±7 cm)
Alignment System OPOS X, OPOS Xtra, Barcode Recognition, OPOS CAM (Optional) OPOS X, OPOS Xtra, Barcode Recognition, OPOS CAM (Optional)
Tracking Performance 40 ft (12 m) guaranteed
13 ft (4 m) on media over 30"		 40 ft (12 m) guaranteed
13 ft (4 m) on media over 30"
Media Thickness 0.002"–0.010" standard
Up to 0.047" with tangential knife		 0.002"–0.010" standard
Up to 0.047" with tangential knife
Cutting Accuracy ±0.25 mm (0.010") ±0.25 mm (0.010")
Maximum Cutting Speed 1,440 mm/sec (56"/sec) 1,440 mm/sec (56"/sec)
Maximum Acceleration 4.25 G 4.25 G
Knife Pressure 400 g (Drag)
1,000 g (Tangential)		 400 g (Drag)
1,000 g (Tangential)
Creaser / Pen Pressure Up to 1,000 g Up to 1,000 g
Cutting Technologies Drag Knife & Tangential Knife Drag Knife & Tangential Knife
TC Head Tools Creasing Tool, Fiber Pen, Ballpoint Pen Creasing Tool, Fiber Pen, Ballpoint Pen
Special Features FlexCut (Through-Cut) FlexCut (Through-Cut)
Connectivity Ethernet, USB, Wi-Fi Ethernet, USB, Wi-Fi
Software Included Summa GoSign, Summa Cutter Control, Illustrator®, CorelDRAW®, MacSign® Plug-ins Summa GoSign, Summa Cutter Control, Illustrator®, CorelDRAW®, MacSign® Plug-ins
Power Requirements 100–120V / 220–240V AC, 50/60 Hz 100–120V / 220–240V AC, 50/60 Hz
Maximum Power Consumption 85 VA 85 VA
Machine Dimensions (W × D × H) 55.5" × 27.2" × 43.7"
(141 × 69 × 111 cm)		 88.6" × 27.2" × 43.7"
(225 × 69 × 111 cm)
Included DTF Bundle S3 TC 75, Frictionless Roll Feed, Roll-Up System 75, GoSign Pro Pack S3 TC 160, Frictionless Roll Feed, Roll-Up System 160, GoSign Pro Pack
